UBIQUITI - Network Video Recorder Instant - UNVR-Instant
| SKU del produttore | UNVR-Instant |
|---|---|
| Produttore | Ubiquiti |
Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Accessori e componenti aggiuntivi:
Ubiquiti Network Video Recorder Instant – UNVR-Instant
The UNVR-Instant is a compact network video recorder with UniFi Protect, featuring a 6-port PoE (802.3af) switch, an HDMI output (ViewPort function), and a 3.5" HDD bay. The device supports up to 15 Full HD cameras or 6 4K cameras simultaneously and runs on the UniFi OS platform.
Product Description
The Ubiquiti UNVR-Instant combines recording, camera powering, and video display functions in a single unit. The built-in PoE switch allows direct connection and powering of up to 6 IP cameras. The HDMI output provides local video display, while the system operates silently thanks to passive cooling. Management is carried out via the UniFi Protect application in a web browser, mobile app, or the UniFi Cloud. The device is NDAA-compliant and also supports the UniFi Access application.
Main Features
- Compact UniFi Protect NVR supporting up to 15 Full HD or 6 4K cameras
- 6 × Gigabit PoE ports (802.3af, 40 W total budget, up to 15.4 W per port)
- 1 × Gigabit uplink port and 1 × HDMI output (ViewPort)
- 3.5" HDD bay for local video storage
- Quad-core ARM 1.7 GHz processor and 4 GB RAM
- Energy-efficient, passively cooled design
- Support for UniFi Protect and UniFi Access, NDAA compliant
Technical Specification
Mechanical

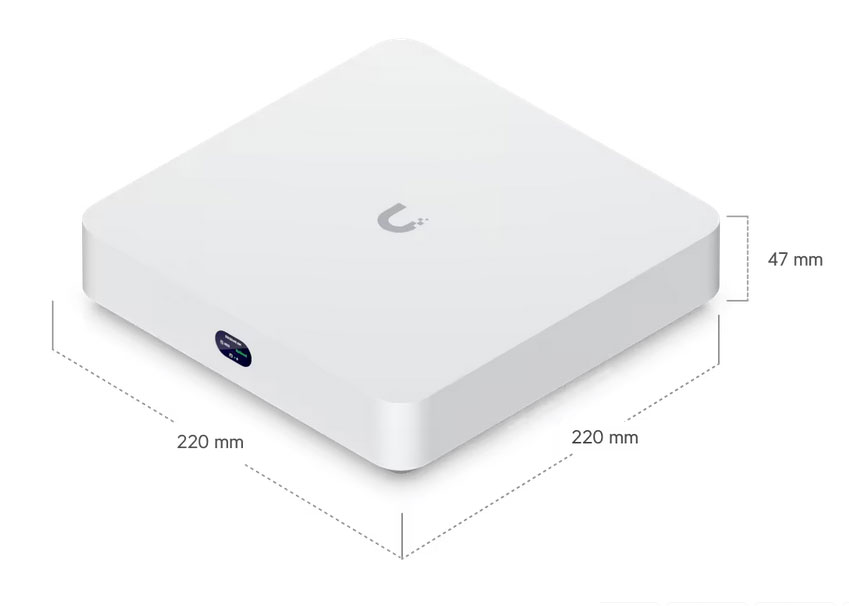

| Dimensions | 220 × 220 × 47 mm |
| Weight | 1.04 kg |
| Enclosure material | Polycarbonate (PC) |
| Mounting | Wall, DIN rail, or desktop |
| Display | 1.14″ LCD |
Interfaces
| Ethernet ports | 1 × RJ45 uplink, 6 × RJ45 PoE (Gigabit, 802.3af) |
| HDMI port | 1 × HDMI output (ViewPort) |
Environmental
| Operating temperature | 0 °C – 40 °C |
| Operating humidity | 5% – 95% (non-condensing) |
Power
| Power input | 100–240 V AC, 50/60 Hz (internal PSU 60 W) |
| Power consumption | 9 W (without PoE load) |
| PoE budget | 40 W total, up to 15.4 W per port |
Management and Compliance
| Management | UniFi OS (UniFi Protect, UniFi Access) |
| NDAA compliance | Yes |
| Certifications | CE, FCC, IC |
Official Product Video
Official video presenting the Network Video Recorder Instant:
Applications and Compatibility
The UNVR-Instant is designed for smaller surveillance installations such as homes, offices, or retail stores. It is compatible with UniFi Protect cameras (G3, G4, G5, AI series) and can be managed locally or remotely via the UniFi Cloud. It also integrates with other UniFi recorders under the same account.
Summary
Ubiquiti UNVR-Instant is a compact NVR featuring a 6-port PoE switch, a 3.5" HDD bay, HDMI output, and full integration with UniFi Protect. It provides a practical solution for small to medium-sized surveillance systems, offering easy installation and centralized camera management within the UniFi ecosystem.
