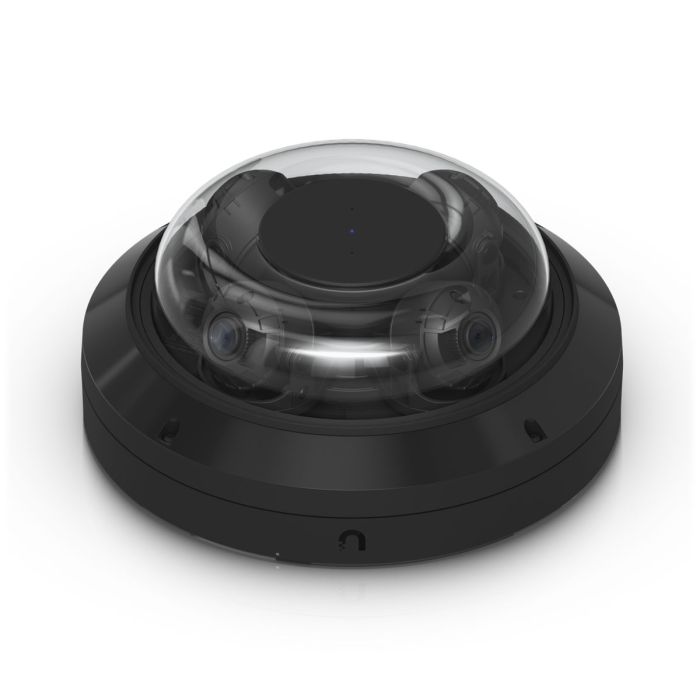

Ubiquiti AI Multi Sensor - IP Camera 4x 4K 32MP (UVC-AI-MS-4-B)
| SKU del fabricante | UVC-AI-MS-4-B |
|---|---|
| Fabricante | Ubiquiti |
The Ubiquiti AI Multi Sensor 4 is an IP camera with a total resolution of 32MP, equipped with four independently adjustable 8MP lenses. Each module has a 2.33x optical zoom, allowing for monitoring selected areas within a 360° radius. PoE++ power is required.
Accesorios y complementos:
Ubiquiti AI Multi Sensor 4 – 4x 4K (32MP) Multi-Lens IP Camera
Ubiquiti AI Multi Sensor 4 (UVC-AI-MS-4-B) is an advanced surveillance camera designed to simultaneously monitor large spaces. Inside the housing are four independent image sensors with a resolution of 8MP each (for a total resolution of 32MP). The main advantage of this solution is the ability to individually adjust each of the four lenses. This allows one camera to simultaneously monitor a wide area in front of the building, and using the built-in 2.33x optical zoom, focus a single frame directly on the entrance gate. Each lens has an adjustable focal length of 3.18–7.42 mm (ƒ/1.8–ƒ/2.8), which translates to a field of view ranging from 108.8° (wide-angle) to 42.8° (narrow-angle). To improve visibility after dark, the device is equipped with 16 adaptive infrared LEDs arranged around the lenses. They provide uniform night vision up to 20 meters in a 360-degree radius. Additionally, the image from all four sensors is continuously analyzed in real time by a built-in artificial intelligence processor. This allows for automatic license plate reading, facial recognition, and the differentiation between moving people, vehicles, and animals. The system also allows for image personalization: it supports HDR mode, multi-level noise reduction (2DNR, 3DNR, NR by motion), manual exposure control, as well as privacy masking and text overlays.
The camera is designed for use in harsh weather conditions. The black aluminum housing (also available in white) weighs 2.4 kg and is IP66-rated and highly vandal-resistant (IK10). Inside, the device features additional expansion slots: two MicroSD card slots and one M.2 2280 SATA SSD port. Due to the high power demand (maximum power consumption is 34.6W), the camera must be connected to a switch supporting the PoE++ power supply standard. Data transfer and power are provided via the built-in gigabit network port (GbE RJ45).
Key Features:
-
Resolution and Optics: Four independent 8MP 3840 x 2160 16:9 sensors (32MP total) with 2.33x optical zoom.
-
Advanced Analytics: Hardware-based license plate reading, facial recognition, and object detection (people, animals, vehicles).
-
Night Mode: Adaptive IR illumination with a range of up to 20 meters, operating in a 360° range.
-
Design and Durability: Vandal-resistant (IK10) and fully waterproof (IP66) alloy housing aluminum.
-
Expansion slots: Two MicroSD slots and an M.2 SATA SSD connector are built into the motherboard.
Technical Specifications
Camera and Optics |
|
| Sensor | (4) 1/2.8" 8MP |
| Lens | (4) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8 |
| Field of View (Wide) | H: 108.8°, V: 57.6°, D: 130.8° |
| Field of View (Tele) | H: 42.8°, V: 24.1°, D: 49.1° |
| Night Mode | Built-in (16) IR LEDs with adaptive control; 20 m (65 ft) range |
| Zoom Mode | 2.33x optical |
Video |
|
| Maximum Resolution | 32MP (4x 8MP 3840 x 2160) |
| Max. Frame Rate | 30 FPS |
| Image Settings | Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, Motion NR, Masking, Text Overlay, HDR |
Device |
|
| Network Interface | GbE Port RJ45 |
| Processor | Dual-core Arm® Cortex®-A76 processor-based system |
| AI Features | Face Recognition, License Plate Recognition (LPR), Intelligent Detection (People, Vehicles, Animals) |
| Expansion Slots | (2) MicroSD Card, (1) M.2 2280 SATA SSD |
| Buttons | (1) Factory Reset |
| Application Package UniFi | Protect |
| NDAA Compliant | Yes |
Power |
|
| Power Method | PoE++ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 34.6W |
Other |
|
| Color | Black |
| Dimensions | ⌀255 x 105 mm (⌀10.04 x 4.13") |
| Weight | 2.4 kg (5.3 lb) |
| Case Material | Aluminum Alloy, Polycarbonate |
| Material bracket | Powder-coated aluminum alloy |
| Mounting | Ceiling (included); Pole, corner, wall, pendant (optional) |
| Ingress Protection Class | IP66 |
| Vandal Resistance | IK10 |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% (non-condensing) |
| Certifications | CE, FCC, IC |
Ubiquiti AI Multi Sensor 4 – Frequently Asked Questions (FAQ)
The Ubiquiti AI Multi Sensor 4 is equipped with an AI processor that supports four independent 4K lenses, each of which can perform AI detection and recognition at runtime – full execution.
The AI Multi Sensor 4 camera simplifies deployment by using PoE++ power and a single mounting point, reducing cabling and installation time while providing 360-degree coverage without blind spots.
No. The AI Multi Sensor 4 camera is not pan-enabled—each module operates by activating AI control of positioning, zoom, and detection zones, which provides and transmits any element.
The AI Multi Sensor 4 comes with a ceiling mount and an optional mount for pole, wall, corner, and pendant mounting. In a ceiling mount installation, it is connected to T-brackets, 3.5″ and 4″ flat boxes, 4″ square boxes, mounted boxes, and cross-wall outlet boxes—installed and installed installation devices.
Any object can be moved around the housing to access the angle. Lenses can be used to provide 360° coverage or to zoom in on specific areas using optical zoom.
