UBIQUITI Gate Hub (UA-Hub-Gate)
| SKU del fabricante | UA-Hub-Gate |
|---|---|
| Fabricante | Ubiquiti |
| Piezas en embalaje colectivo | 10 |
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
UBIQUITI UniFi Access Hub Gate (UA-HUB-GATE)
Product Description

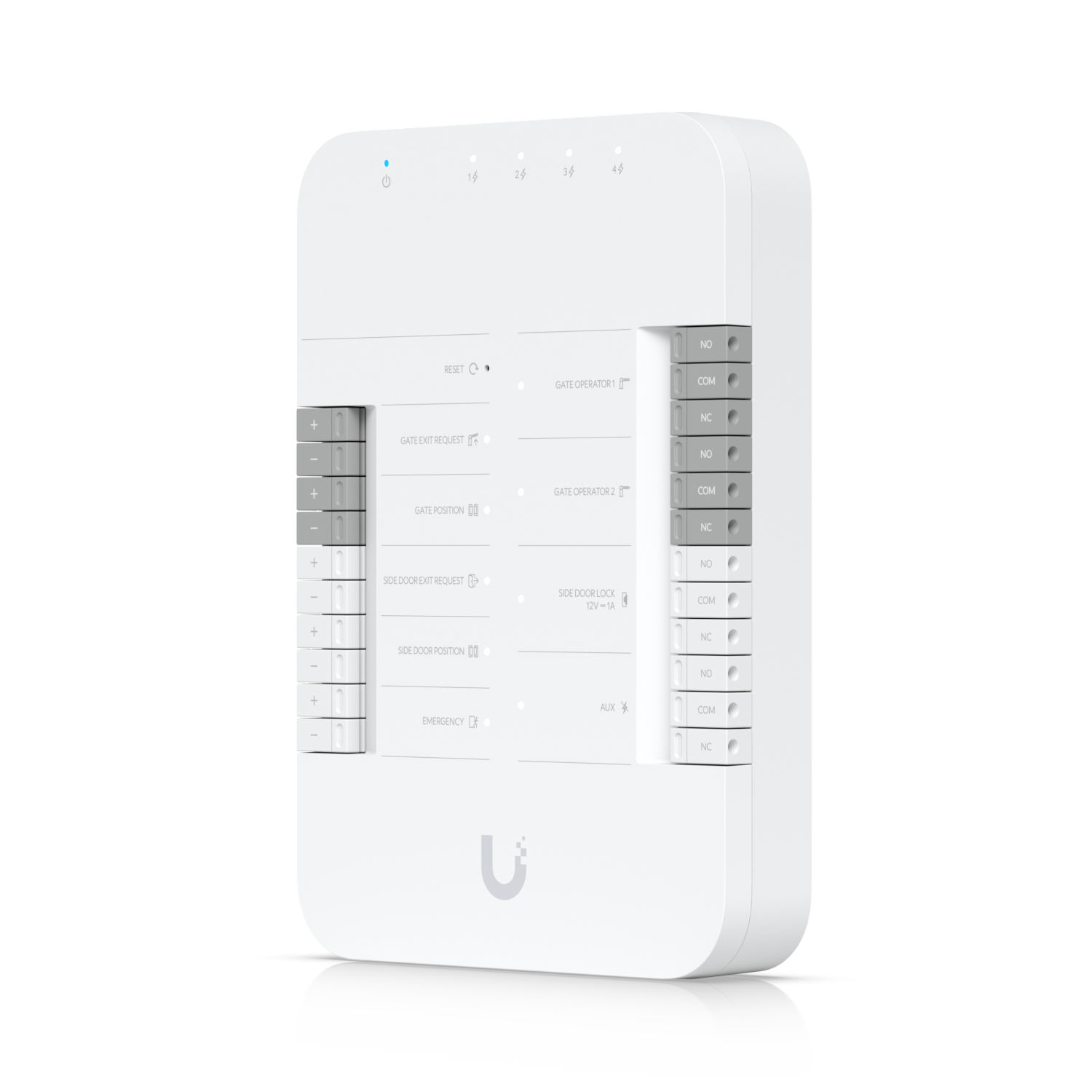

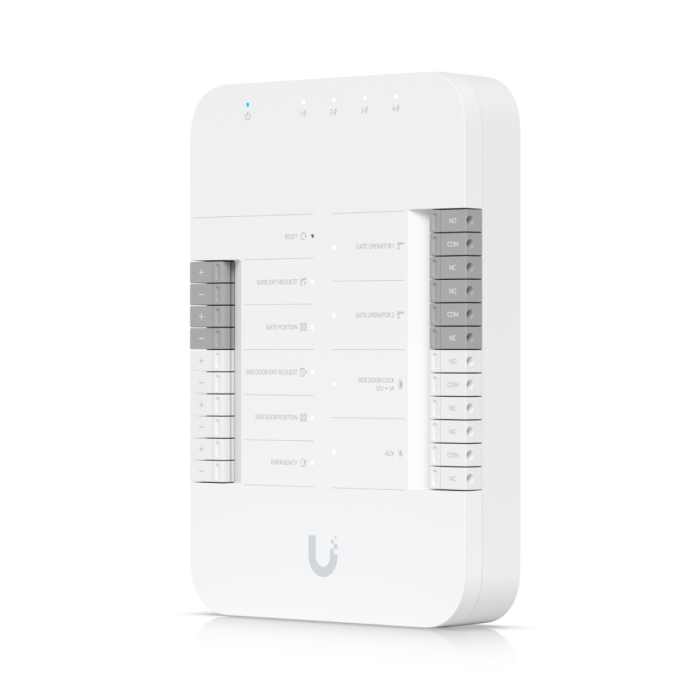

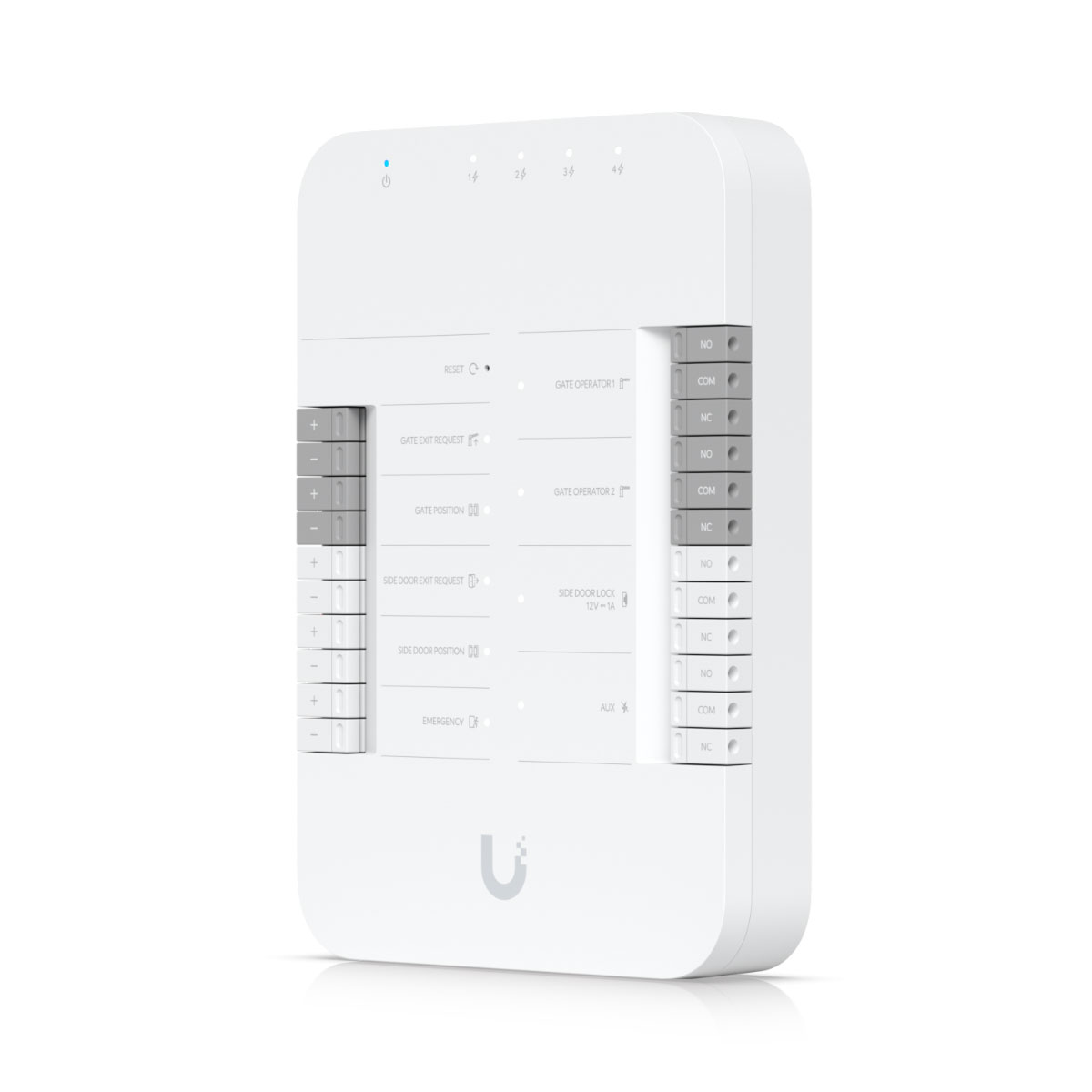

The UniFi Access Hub Gate is a rugged access control hub engineered specifically for vehicular gates and barrier arms. Designed to integrate with the UniFi Access system, the UA-HUB-GATE enables secure control over outdoor gate entry points and supports long-range RFID systems and standard UniFi Access Readers.

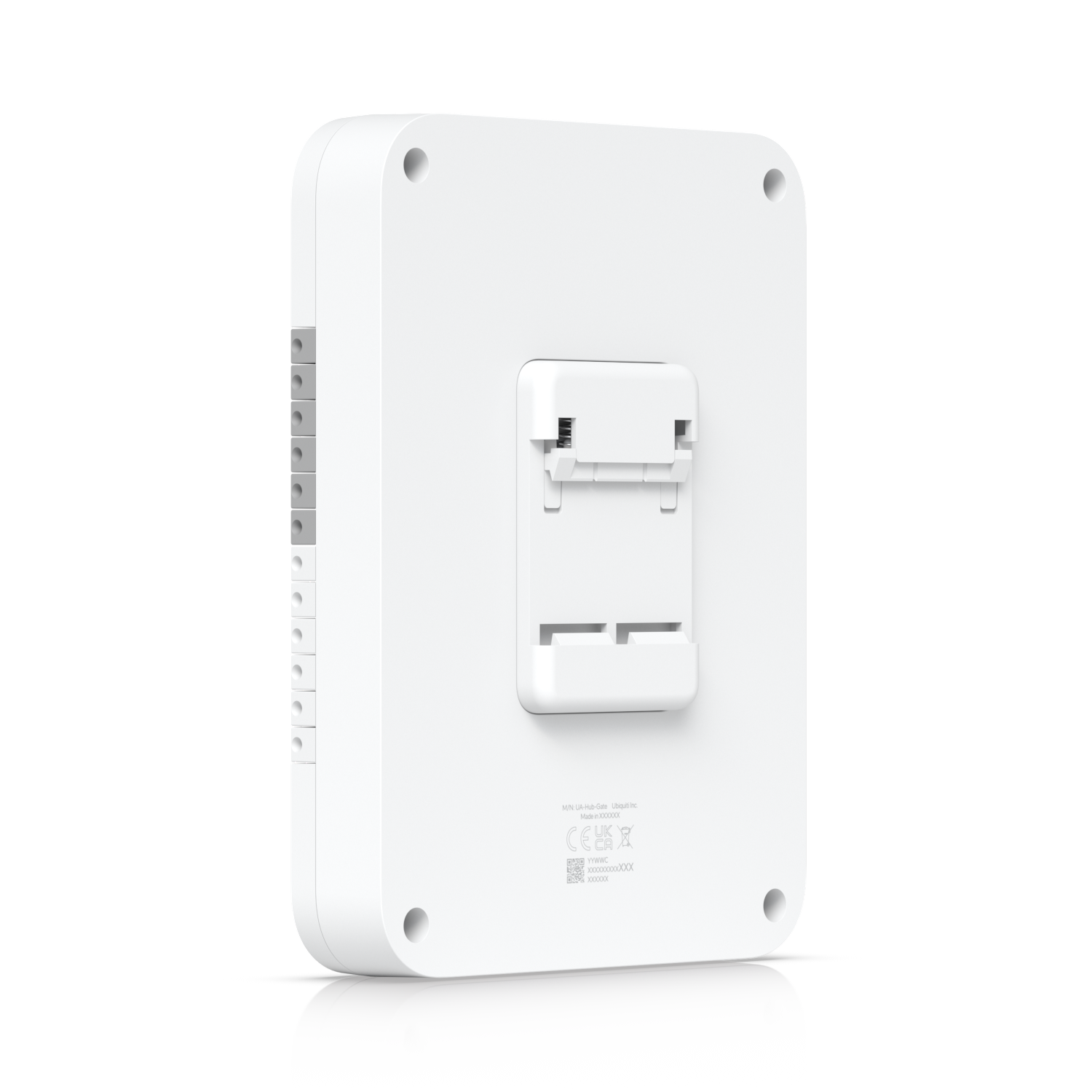

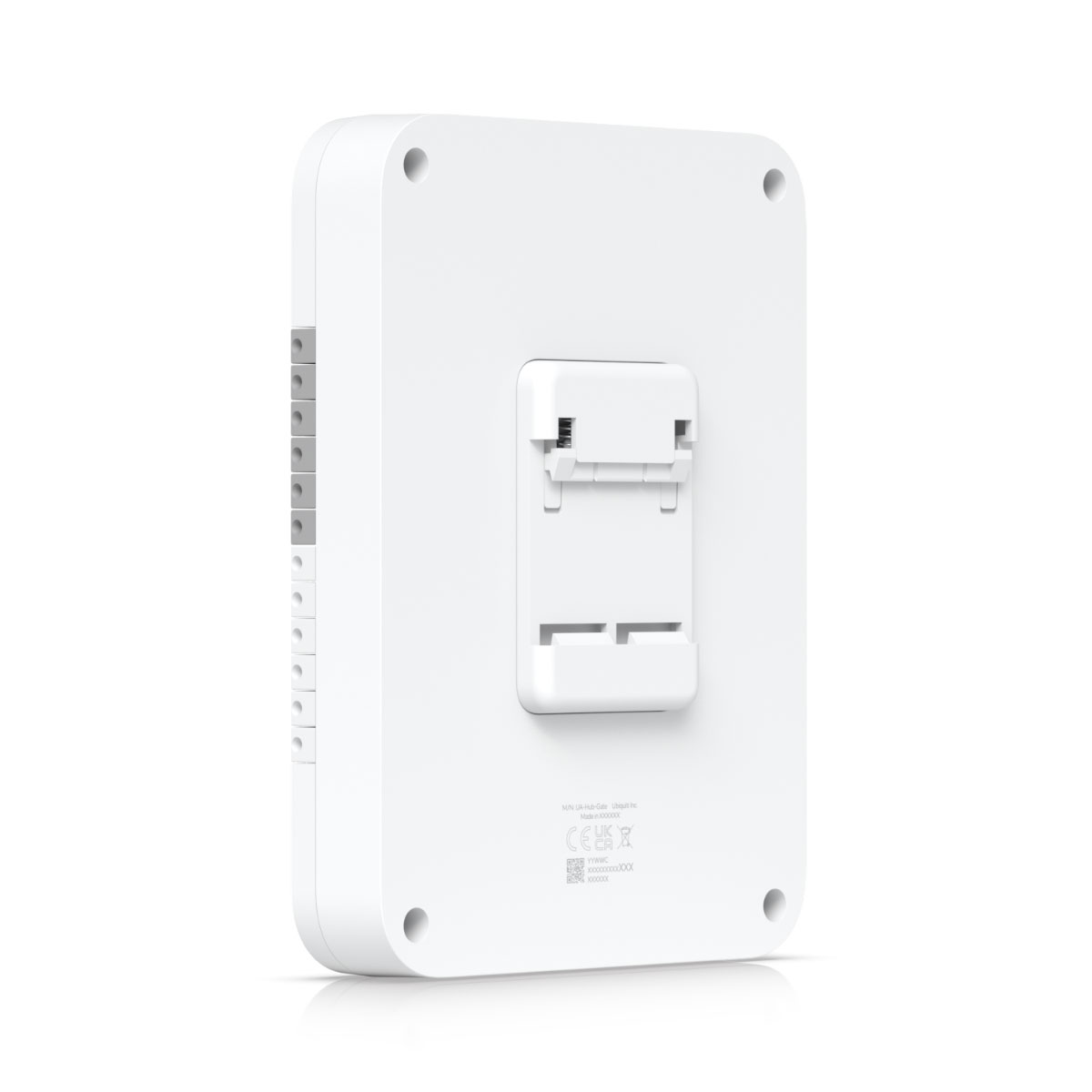

The hub includes dedicated inputs and outputs for relay-based gate control, long-range reader interfaces, and sensors such as loop detectors and gate position sensors. It features industrial-grade surge protection, weather-resistant housing, and supports DIN rail mounting for easy deployment in gate enclosures or external cabinets. It is powered via PoE++ (802.3bt) and connects to the UniFi Access Controller for centralized management.
Key Features
- Designed for vehicular gate and barrier access control
- Supports UniFi Access and long-range Wiegand readers
- PoE++ (802.3bt) powered with surge protection
- Relay outputs and dedicated inputs for gate sensors
- DIN rail mountable with weather-resistant design
- Fully managed via UniFi Access Controller
Especificaciones técnicas
Technical Data
| Unidad de mantenimiento de existencias (SKU) | UA-HUB-GATE |
| Reader Interfaces | 1x UA Reader, 1x Wiegand |
| Inputs | Loop detector, gate position sensor, REX |
| Salidas | Relay output for gate arm or motor |
| Interfaz de red | 10/100/1000 Mbps Ethernet |
| Método Power | PoE++ (802.3bt) |
| Consumo de energía | Max. 10 W |
| Protección contra sobretensiones | Integrated surge protection circuitry |
| Montaje | DIN rail |
| Temperatura de funcionamiento | -20 to 50°C |
| Humedad de funcionamiento | 5% to 95% non-condensing |
| Dimensiones | 124 x 90 x 45 mm |
| Peso | 410 g |
| Certificaciones | CE, FCC, IC |
Applications and Compatibility
The UA-HUB-GATE is ideal for managing secure vehicle access at parking lots, campuses, warehouses, and gated facilities. It integrates easily with long-range RFID readers, access control sensors, and UniFi Access management systems to deliver complete gate automation.
Summary
UBIQUITI UA-HUB-GATE is a dedicated gate controller for UniFi Access, offering PoE++ power, industrial protection, and seamless vehicle entry control. Its compact, rugged design ensures reliable operation in outdoor environments.
