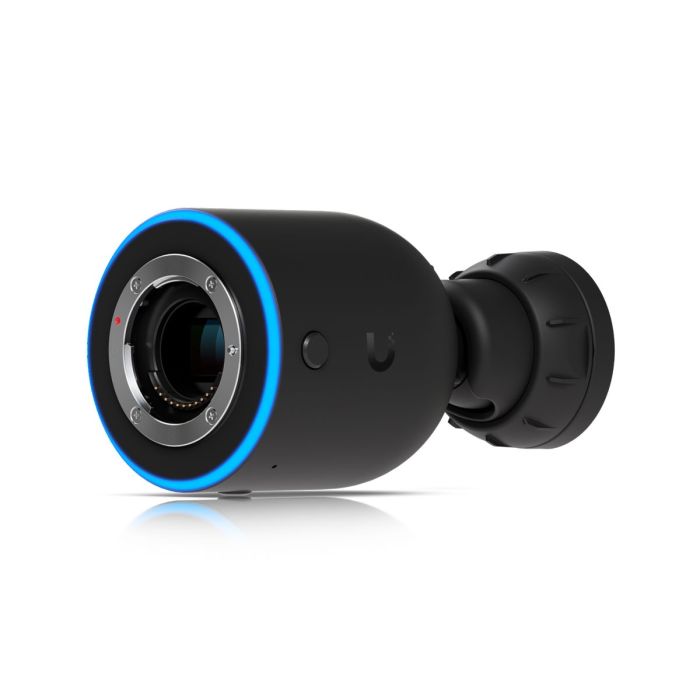

Ubiquiti AI DSLR - UVC-AI-DSLR-LD

Ubiquiti AI DSLR – Camera with a 4/3" Sensor and Interchangeable Lenses

Ubiquiti AI DSLR is a camera for indoor and outdoor surveillance, offering exceptional image quality and impressive performance in low light conditions. What sets this model apart from standard devices is the use of a 4/3" CMOS sensor (10MP) and compatibility with professional, interchangeable M. Zuiko Digital ED PRO photographic lenses (choice of bright 17mm ƒ/1.2 or 45mm ƒ/1.2 lenses). The camera records in 4K resolution (8MP, 3840 x 2160 in 16:9 aspect ratio) at a smooth 30 frames per second.

Thanks to the powerful, quad-core ARM Cortex-A53 processor, the device performs advanced analytical tasks. The camera easily handles intelligent detection of people, vehicles, and animals, and also offers facial recognition and license plate recognition (LPR) functions. The device has a built-in two-way audio system (this feature becomes unavailable when the camera is installed in a dedicated external housing). The software supports a wide range of image settings, including advanced noise reduction methods (2DNR, 3DNR, NR by motion).

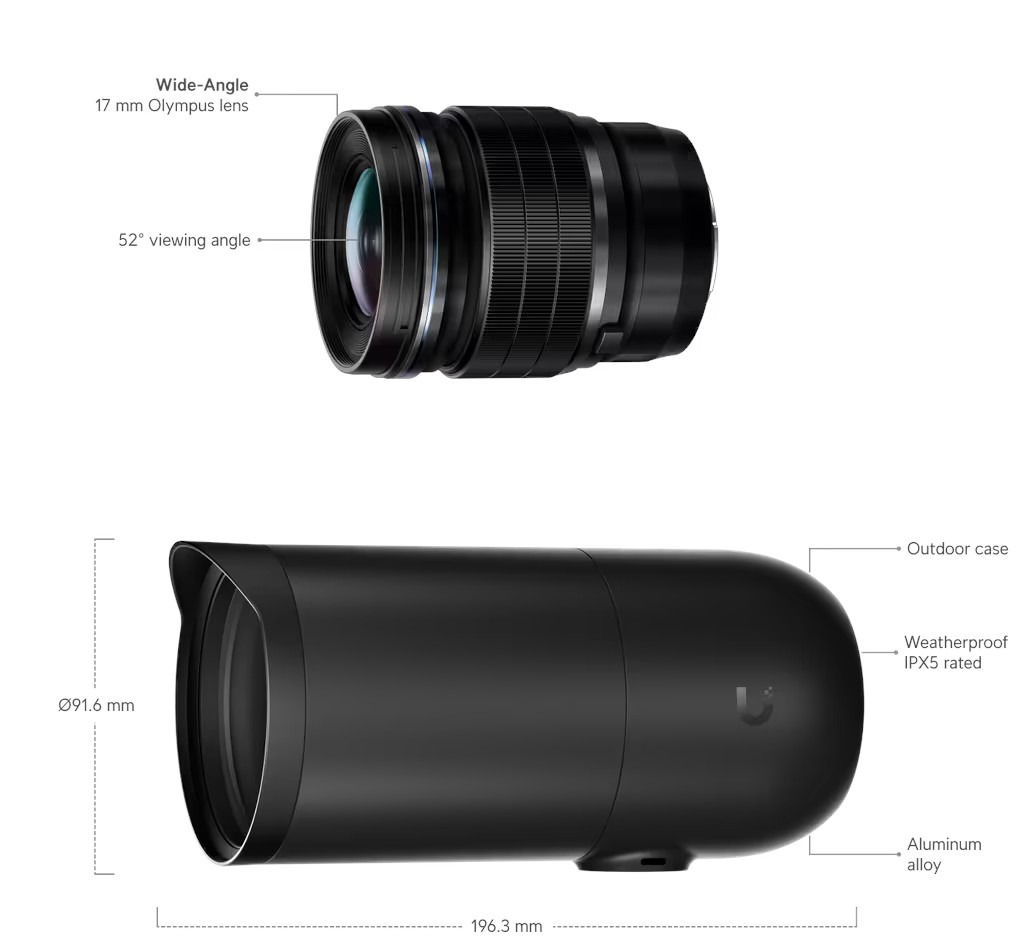

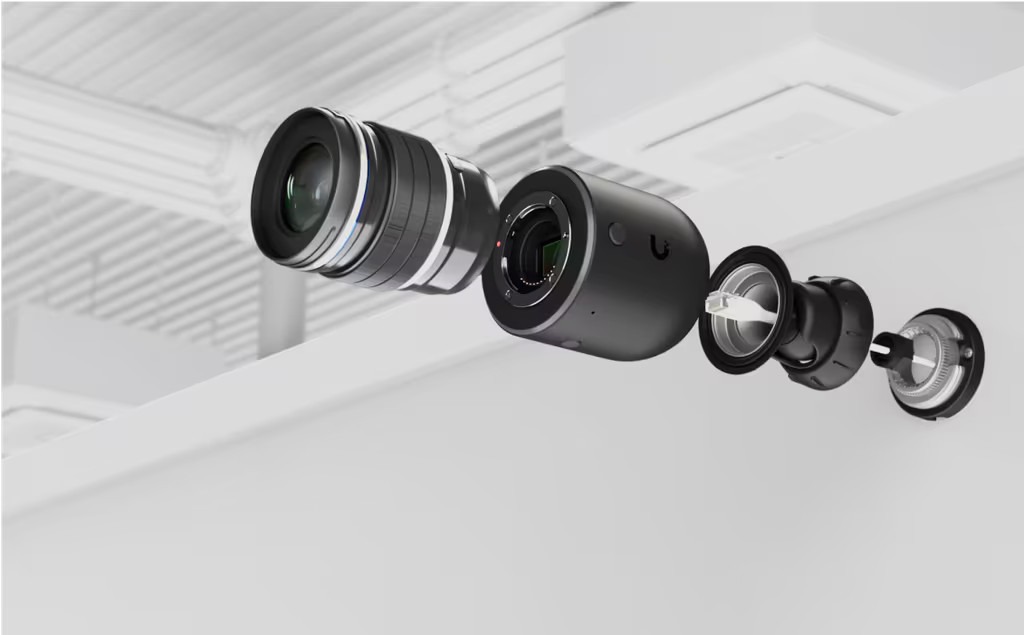

The modular design, made of a durable aluminum alloy, allows for customization to the needs of the installation. By default, the camera is designed for indoor use, but with an outdoor enclosure, it achieves an IPX5 waterproof rating, allowing for safe outdoor operation in temperatures ranging from -20°C to 40°C. The device communicates with the network via a gigabit Ethernet port (GbE RJ45) and requires PoE+ power (maximum power consumption with the lens in operation is 17.77 W). The set includes brackets for wall and pole mounting.

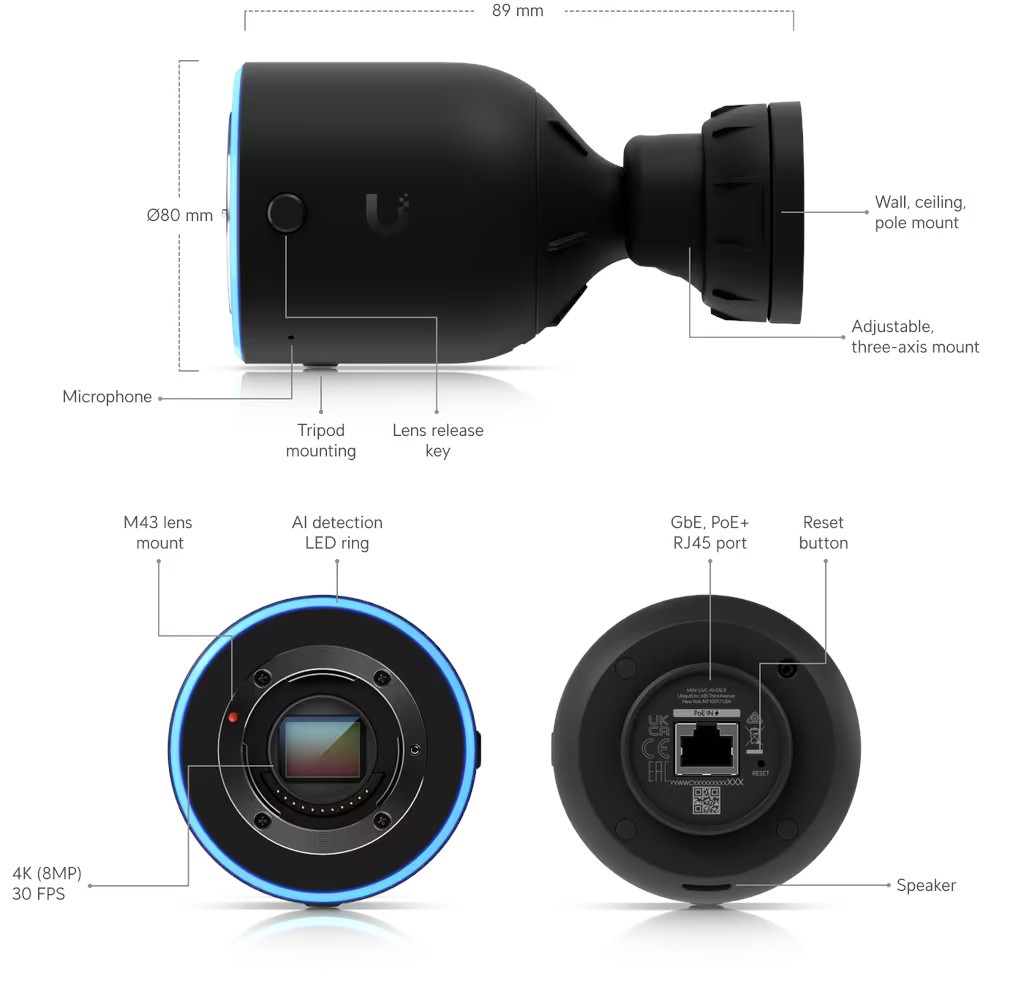

Key Features

• Resolution: 4K (8MP, 3840 x 2160, 16:9 aspect ratio) at 30 fps

• Optics:4/3" 10MP CMOS sensor compatible with Bright M. Zuiko PRO lenses (17 mm or 45 mm, ƒ/1.2)

• Advanced AI: Face recognition, license plate reading, and object and animal detection

• Audio: Two-way audio support (note: this feature is disabled when an external housing is installed)

• Power and Network: Gigabit Ethernet port (GbE RJ45), PoE+ (max. 17.77 W)

• Ruggedness: Aluminum alloy construction, IPX5 rating (requires dedicated external enclosure)

• Mounting: Wall-mount, pole-mount (38-50 mm diameter) (included), or tripod (optional)

• Controls: Reset button and physical lens release button

Technical Specifications
