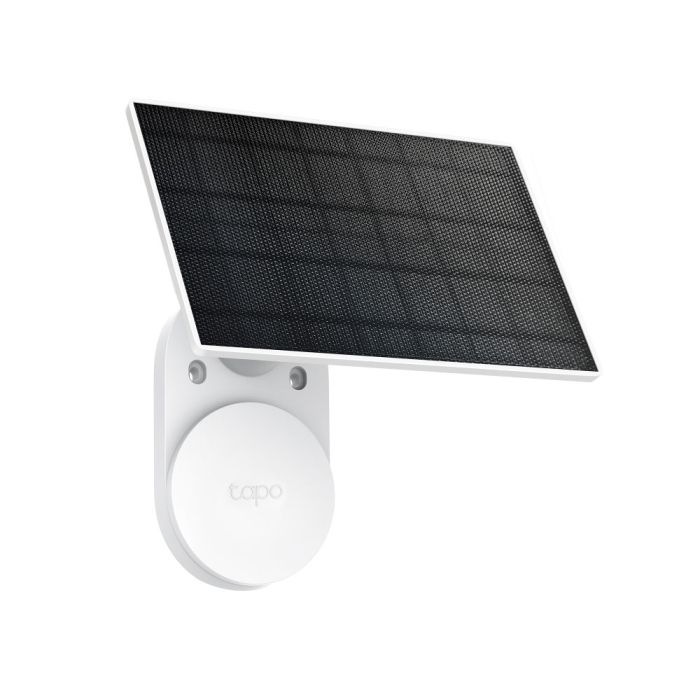

Tp-Link Tapo A201 - External solar panel for charging wireless cameras
| SKU del fabricante | Tapo A201 |
|---|---|
| EAN | 8885020620405 |
| Fabricante | TP-Link |
The TP-Link Tapo A201 is a 2.5W solar panel that powers Tapo battery-powered cameras. Thanks to its 4-meter cable and monocrystalline cells, just 45 minutes of sunlight a day is enough to power the device for a full day, even if the camera is in the shade.
TP-Link Tapo A201 – Outdoor Solar Panel for Wireless Cameras (2.5 W)
TP-Link Tapo A201 is a compact solar panel designed as a dedicated, maintenance-free power source for battery-powered cameras from the Tapo ecosystem. The device is built using high-efficiency monocrystalline silicon cells, which, with a maximum output power of 2.5 W (voltage 5.2 V), enable efficient conversion of solar radiation energy. According to calculations for optimal conditions, just 45 minutes of direct sunlight is enough to charge the battery for a standard camera's full 24-hour operation. The module is designed to power only one device at a time.
The panel has an integrated short 0.25 m cable, to which the included 3.8 m extension cable can be connected. This provides a total range of over 4 meters, allowing the camera to be mounted hidden or in the shade (e.g., under a deep roof), while the panel itself is routed to a location with maximum sunlight. The device is equipped with a USB-C connector by default, but the manufacturer has ensured backward compatibility with older devices using the included Micro USB adapter, which is equipped with appropriate seals.
The panel's design is IP65-rated, protecting the circuits from dust and rain. The photovoltaic module can operate in a wide temperature range from -20°C to 45°C, continuously supplying power to connected devices. However, it's important to remember an important technical aspect regarding operation itself – due to the physical and chemical limitations of the lithium-ion cells inside the cameras themselves, it is recommended to charge their batteries in positive temperatures (between 0°C and 45°C). The set also includes a fully adjustable wall mount, allowing you to precisely adjust the angle of the cover relative to the sun.
Key features:
-
Intended use: Powering wireless IP cameras from the Tapo series (supports one camera at a time).
-
Power supply parameters: Maximum output power 2.5 W (at a voltage of 5.2 V).
-
Technology: High-efficiency monocrystalline silicon cells.
-
Cables and connectors: USB Type-C output. Includes a base cable (0.25 m), an extension cable (3.8 m), and a Micro USB adapter.
-
Environmental resistance: IP65 protection class.
-
Temperature range: Permissible operating temperature of the panel itself is -20°C to 45°C (charging the battery in the camera requires an ambient temperature above 0°C).
-
Mounting: Adjustable wall mount (can be mounted independently or, on selected models, integrated with the camera housing).
Compatible devices
Technical specifications
| Compatibility | Works with Tapo C400, Tapo C410, Tapo C420, Tapo C425, Tapo C460 and Tapo D210. and their subsequent versions |
| Device Support | The solar panel can only be connected to one camera |
| Output Port | USB Type-C (microUSB adapter included, required for selected models) |
| Certifications | CE, FCC, RoHS, RCM |
| Power Supply | |
| Power Source | Sunlight |
| Output Parameters | Maximum Voltage: 5.2 V; Maximum Power: 2.5 W |
| Cable Length | Integrated Cable: 0.25 m; Extension cable: 3.8 m |
Other |
|
| Dimensions | 173.42 × 120.42 × 15.7 mm (6.83 × 4.74 × 0.62") |
| Ingress protection class | IP65 |
| Mounting options | Wall mounting |
| Temperature Operating Temperature | -20°C to 45°C (battery charging recommended between 0°C and 45°C) |
| Storage Temperature | -40°C to 60°C |
| Air Humidity | 10% ~ 90% RH (non-condensing) |
| Package Contents | Tapo A201 Adjustable Mounting Bracket Mounting Screws and Anchors 6 Gaskets and 1 Cable Tie Extension Cable USB-C to Micro USB Adapter USB-C to USB-C Mounting Template Sticker Quick Installation Guide |
1. Only one camera can be connected to the solar panel. The Tapo solar panel is compatible with all battery-powered Tapo cameras. Due to the unique magnetic base of the Tapo C425 model, this camera is the only one that must be mounted separately from the panel.
2. The 45-minute sunlight duration is based on typical environmental conditions (1000W/m², 25℃, AM1.5) and a specific operating scenario (100 events per day). Actual duration may vary.
3. Actual power output may vary depending on the mounting location, weather conditions, temperature, and other environmental factors.
