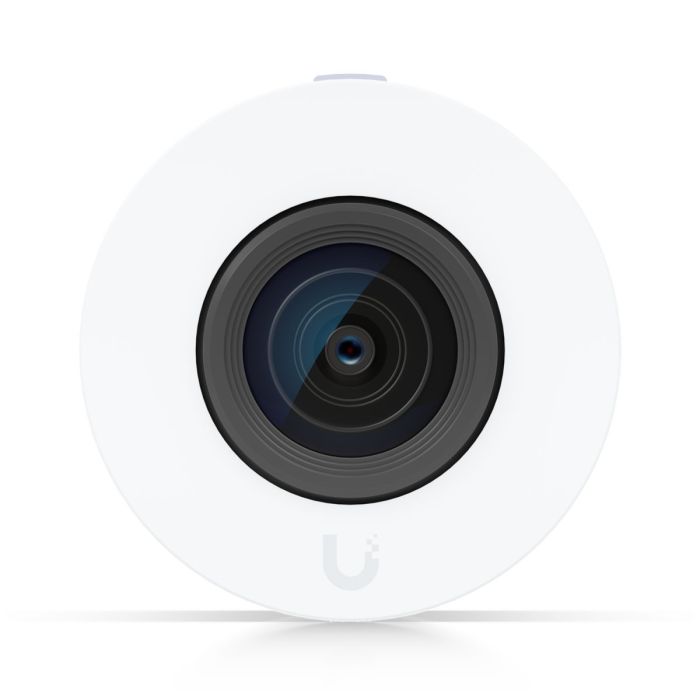

Ubiquiti AI Theta Lens - 4K Wide-Angle Lens for Theta Hub System (UVC-AI-Theta-Lens)

Ubiquiti AI Theta Lens – Wide-Angle 4K Lens for the Theta Hub System

Ubiquiti AI Theta Lens (UVC-AI-Theta-Lens) is a dedicated wide-angle lens module designed for the AI Theta Hub system. The device captures detailed 4K images (8MP, 3264 x 2448 pixels in 4:3 aspect ratio) at up to 24 frames per second. Thanks to its fixed-focus lens and 8MP CMOS sensor with a wide field of view (97.5° horizontal and nearly 118° diagonal), the camera is ideal for securing large, crowded spaces. It is an excellent choice for monitoring wide building entrances, corridors, main lobbies, and reception areas.

The miniature design, weighing just 15 grams and measuring less than 23 millimeters in diameter, is made of a durable aluminum alloy and polycarbonate. The module is intended for indoor installation only and can operate in a wide temperature range from -20°C to 40°C. The device is characterized by very low power consumption – maximum power consumption is just 2.5 W using the proprietary Theta power and communication interface (5V DC, 0.5A).

The system includes settings such as: video optimization, allowing for exposure adjustment, white balance, text overlay, masking, and advanced noise reduction (2DNR, 3DNR, NR by motion). A standard ceiling or wall mounting bracket is included. For even greater installation flexibility, the lens is fully compatible with an optional angle mount (AI Theta Angle Mount).

Key Features

• Device Type: Wide-angle lens requires connection to the Theta Hub AI unit.

• Resolution: 4K video (8MP, 3264 x 2448 in 4:3 aspect ratio) at 24 fps.

• Optics: 8MP CMOS sensor, wide field of view (97.5° horizontal, 118.2° diagonal).

• Application: Monitoring large and busy spaces (entrances, reception halls)

• Power Supply: Proprietary Theta connector (5V DC), exceptionally low power consumption (max. 2.5 W)

• Design: Ultra-miniature design (weight 15 g), aluminum alloy and polycarbonate housing

• Mounting: Flat wall/ceiling mount included, support for optional angled mount

Technical Specifications
