UBIQUITI - Network Video Recorder Instant Kit - UNVR-Instant-Kit
| SKU del produttore | UNVR-Instant-Kit |
|---|---|
| Produttore | Ubiquiti |
The Ubiquiti UNVR-Instant-Kit includes an NVR, 4 UVC-G5-Turret-Ultra cameras, and a 1 TB HDD. Complete UniFi Protect surveillance solution.
Ubiquiti Network Video Recorder Instant – UNVR-Instant-Kit

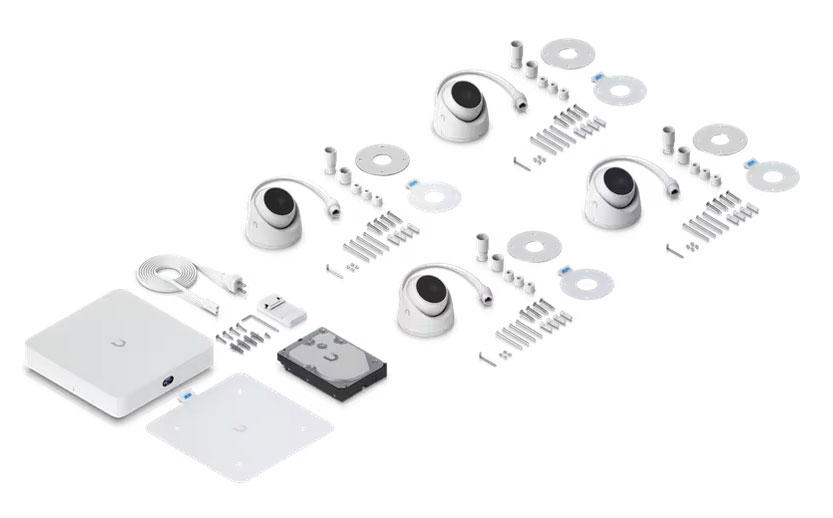

The UNVR-Instant-Kit includes a compact UniFi Protect network video recorder, four UVC-G5-Turret-Ultra cameras, and a 1 TB 3.5" HDD. The recorder features a 6-port PoE switch (802.3af), an HDMI output (ViewPort function), and runs on the UniFi OS platform. It supports up to 15 Full HD cameras or 6 4K cameras simultaneously.
Product Description
The UNVR-Instant-Kit combines the UNVR-Instant recorder, a 1 TB HDD, and four G5 Turret Ultra cameras into a complete monitoring package. The recorder integrates video recording, PoE power supply, and video output in one unit. The built-in PoE switch allows direct connection and powering of up to 6 IP cameras. The HDMI output provides local display, and the fanless design ensures silent operation. Management is done via the UniFi Protect application in a web browser, mobile app, or remotely via UniFi Cloud. The recorder also supports the UniFi Access application and is NDAA-compliant.
Main Features
- Compact UniFi Protect NVR supporting up to 15 Full HD or 6 4K cameras
- 6 × Gigabit PoE ports (802.3af, 40 W total budget, up to 15.4 W per port)
- 1 × Gigabit uplink port and 1 × HDMI output (ViewPort)
- 3.5" HDD bay – includes 1 TB HDD
- Quad-core ARM 1.7 GHz processor and 4 GB RAM
- Energy-efficient, passively cooled design
- Supports UniFi Protect and UniFi Access, NDAA compliant
- 4 × UVC-G5-Turret-Ultra cameras (2K, IR up to 30 m, built-in microphone)
Technical Specifications
Mechanical
| Dimensions | 220 × 220 × 47 mm |
| Weight | 1.04 kg |
| Enclosure material | Polycarbonate (PC) |
| Mounting | Wall, DIN rail, or desktop |
| Display | 1.14″ LCD |
Interfaces
| Ethernet ports | 1 × RJ45 uplink, 6 × RJ45 PoE (Gigabit, 802.3af) |
| HDMI port | 1 × HDMI output (ViewPort) |
Environmental
| Operating temperature | 0 °C – 40 °C |
| Operating humidity | 5% – 95% (non-condensing) |
Power
| Power input | 100–240 V AC, 50/60 Hz (internal PSU 60 W) |
| Power consumption | 9 W (without PoE load) |
| PoE budget | 40 W total, up to 15.4 W per port |
Management and Compliance
| Management | UniFi OS (UniFi Protect, UniFi Access) |
| NDAA compliance | Yes |
| Certifications | CE, FCC, IC |
Applications and Compatibility
The UNVR-Instant-Kit is designed for small to medium surveillance installations such as homes, offices, or retail stores. It is compatible with UniFi Protect cameras (G3, G4, G5, AI series) and can be managed locally or remotely via UniFi Cloud. It also integrates with other UniFi recorders under the same account, allowing system expansion.
Summary
Ubiquiti UNVR-Instant-Kit includes the UNVR-Instant NVR, a 1 TB HDD, and four UVC-G5-Turret-Ultra cameras. With its integrated PoE switch, HDMI output, and UniFi Protect platform, it provides a complete and scalable monitoring solution with centralized camera management.
