Ubiquiti UniFi Video Camera Dome G4 (UVC-G4-DOME)
| SKU del fabricante | UVC-G4-DOME |
|---|---|
| EAN | 810010073013 |
| Fabricante | Ubiquiti |
| Piezas en embalaje colectivo | 20 |
The Ubiquiti G4 Dome is a 2K (4MP) wide-angle camera with enhanced durability (IK08, IPX4). It features intelligent AI detection, two-way audio, and night vision.
Ubiquiti G4 Dome – Wide Field of View Camera

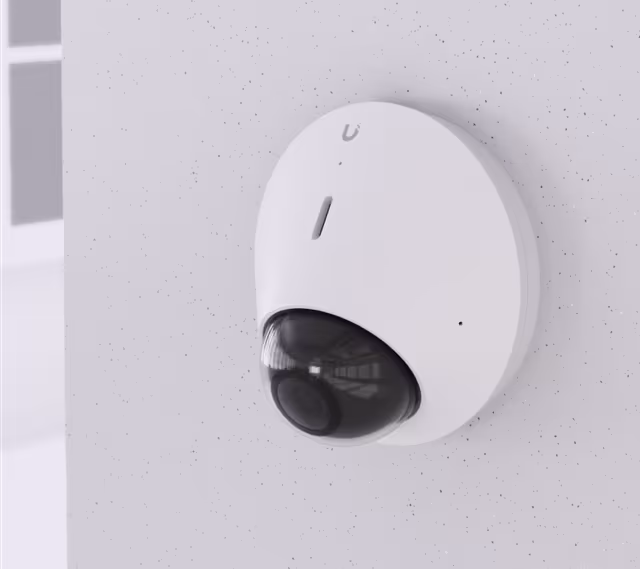

The Ubiquiti G4 Dome (UVC-G4-Dome) is a PoE-powered camera designed specifically for ceiling mounting and surveillance of large areas. The device is equipped with a 5MP CMOS sensor that records images in 2K resolution (4MP, 2688 x 1512 pixels in 16:9 format) at 24 fps. The fixed-focus lens provides a very wide field of view (102.4° horizontally and as much as 134.3° diagonally), allowing for monitoring large spaces. Night vision is ensured by a built-in light sensor, a mechanical infrared cut filter (ICR), and an IR illuminator with a range of up to 9 meters.
Thanks to the use of a powerful quad-core ARM Cortex-A53 processor, the camera supports intelligent detection systems, recognizing people, vehicles, and animals in the frame. The device also offers basic image correction settings (including brightness, contrast, saturation, and noise reduction) and built-in two-way audio, allowing for convenient interaction with the monitored environment.
The compact 109.2 x 64.5 mm housing combines aluminum alloy and polycarbonate, while the optics are protected by a specially hardened dome. The camera is resistant to mechanical damage to an IK08 level and has an IPX4 ingress protection rating. It connects to the network via a fast, gigabit Ethernet port (GbE RJ45). The device is powered by PoE (44–57V DC) and draws a maximum of 5W of power. The set includes accessories necessary for wall and ceiling mounting.
Key Features
-
Resolution: 2K (4MP, 2688 x 1512 in 16:9 format) at 24 fps
-
Optics: 5MP CMOS sensor, fixed-focus lens with a wide field of view (102.4° in level)
-
Performance: Quad-core ARM Cortex-A53 processor
-
AI Features: Intelligent detection of people, vehicles, and animals
-
Night mode: Built-in light sensor, IR LEDs with a range of up to 9 meters, and an ICR filter.
-
Audio: Supports two-way audio communication (Two-way audio) audio)
-
Power and Network: Gigabit Ethernet port (GbE RJ45), standard PoE (max. 5W)
-
Durability: IK08 vandal-resistant, IPX4 sealed, aluminum housing and hardened dome




Technical Specifications
| IR Night Vision | 9 m |
| Intelligent Detection (People, Vehicles, Animals) | Yes |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 71.4°, D: 134.3° |
| Audio | Two-Way Audio |
| Network Interface | GbE RJ45 Port |
Video |
|
| Image Settings | Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz |
| Max. Frame Rate | 24 FPS |
| Video Resolution | 4MP 2688 x 1512 (16:9) |
Optics |
|
| Sensor | 5MP CMOS |
| Lens | Fixed Focal Length |
| Night Mode | Built-in Light Sensor, IR LED illumination and IR cut filter |
Other |
|
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| Power Supply Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53-based system |
| Buttons | (1) Factory Reset |
| Compatible with NDAA | ✓ |
| Certifications | CE, FCC, IC |

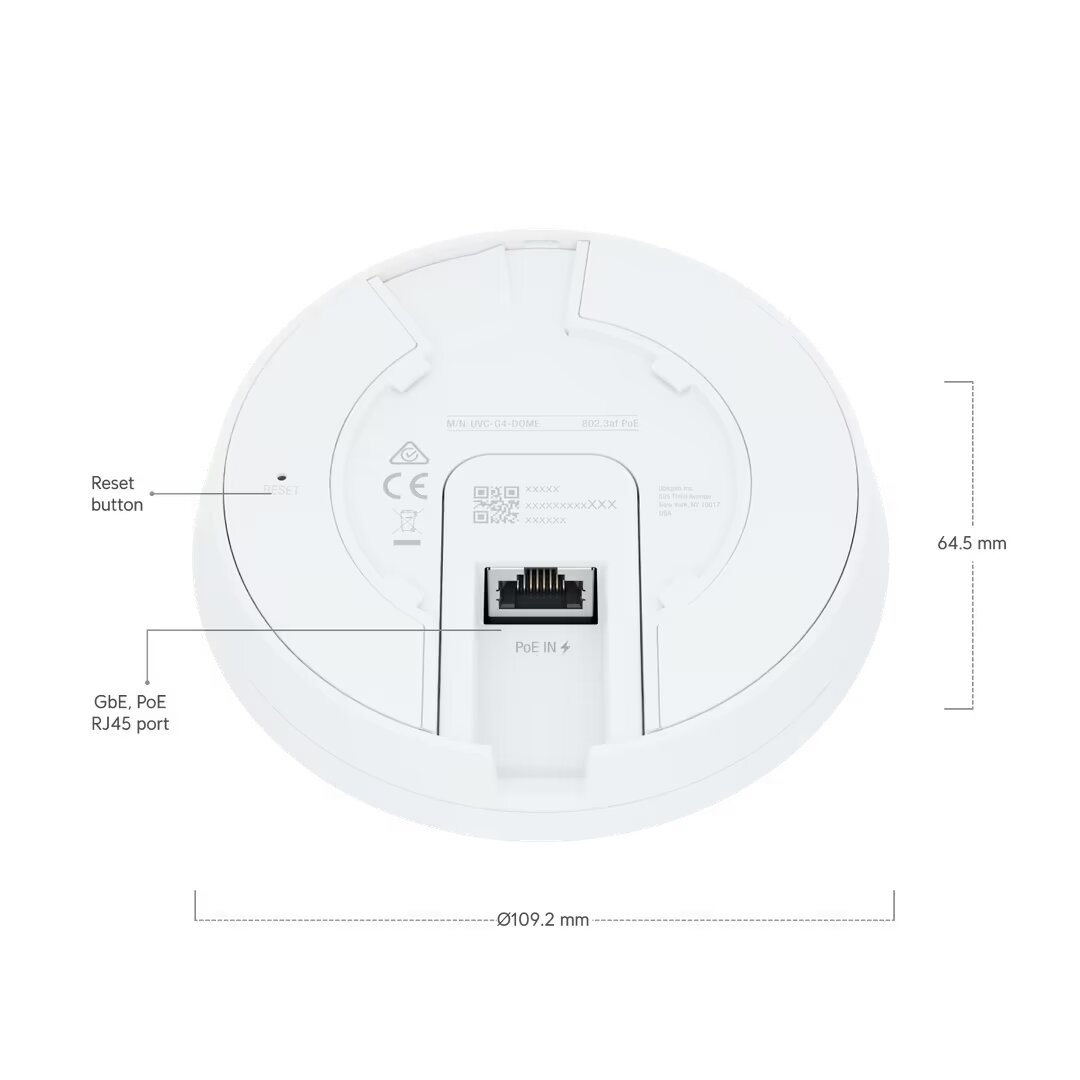

| Dimensions | ⌀109.2 x 64.5 mm |
| Color | White |
| Weight | Without handle: 370 g With handle: 390 g |
| Weight Weatherproof | IPX4 |
| Vandal Resistance | IK08 |

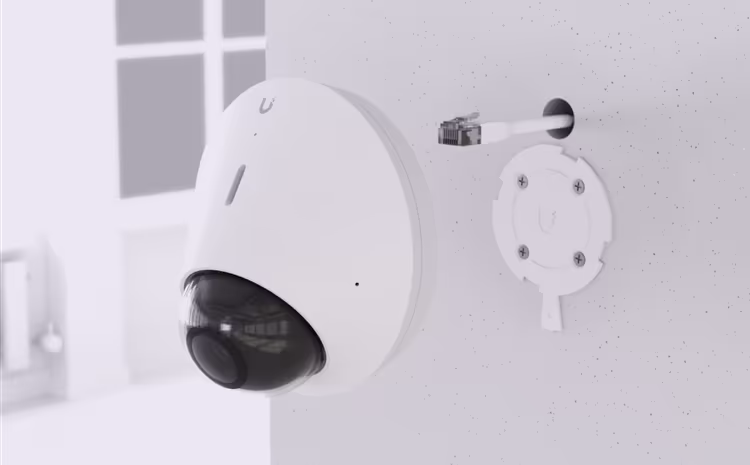

| Mounting | Wall, Ceiling (included) Junction Box, Pole Mount (optional) |
| Housing Material | Aluminum Alloy, Polycarbonate, Hard-Coated Dome |
| Bracket Material | Polycarbonate, Stainless Steel |
| Operating Temperature | -20 to 40° C |
| Operating Humidity | 0 to 90% (non-condensing) |




| SKU del fabricante | UVC-G4-DOME |
|---|---|
| EAN | 810010073013 |
| Fabricante | Ubiquiti |
| Piezas en embalaje colectivo | 20 |
