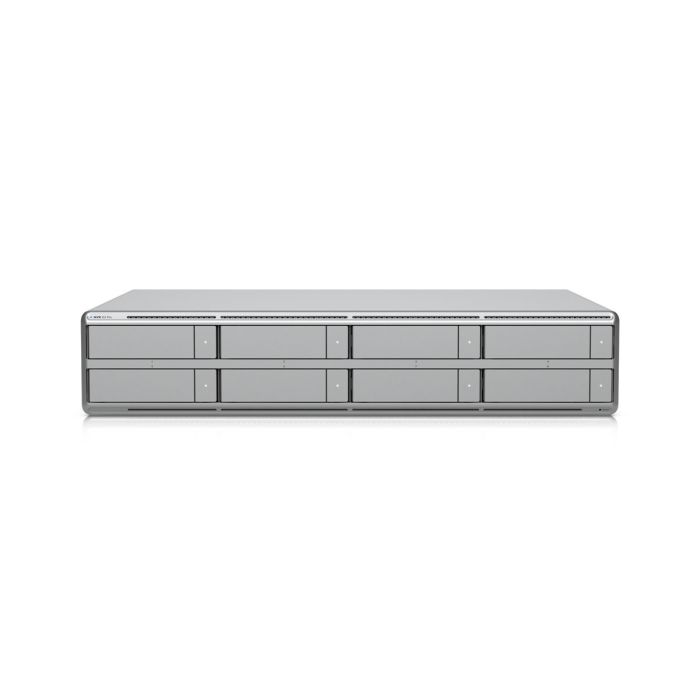

Ubiquiti Network Video Recorder G2 Pro (UNVR-G2-Pro)
| SKU del fabricante | UNVR-G2-Pro |
|---|---|
| Fabricante | Ubiquiti |
The Ubiquiti Network Video Recorder G2 Pro is a 2U rackmount network recorder with eight 2.5"/3.5" HDD/SSD drive bays and built-in Edge AI Analytics. It features an 8-core Qualcomm Kryo processor, 16 GB RAM, and 10G SFP+ and 2.5 GbE RJ45 ports. It supports up to 100 HD cameras (or 50 4K cameras).
Ubiquiti Network Video Recorder G2 Pro - 2U Network Video Recorder with Edge AI Analytics
Ubiquiti Network Video Recorder G2 Pro (UNVR-G2-Pro) is a 2U rack-mounted network video recorder with built-in Edge AI Analytics. This technology uses artificial intelligence to process data locally from compatible UniFi Protect cameras, enabling faster searching and playback of recordings without the need to upload footage to the cloud. Edge processing enhances data privacy, reduces analysis time, and minimizes network traffic. The device provides centralized management of your security infrastructure by combining UniFi Protect, UniFi Access, and UniFi Connect applications. The enclosure is made of SGCC steel and is designed for installation in standard 19" rack cabinets. NDAA compliance allows deployment in environments with enhanced security requirements.
The device is powered by a Qualcomm® Kryo™ CPU featuring one Prime core running at 3.2 GHz, four Performance cores running at 2.8 GHz, and three Efficiency cores running at 2.0 GHz, supported by 16 GB of RAM. This enables the recorder to support up to 100 HD cameras, 70 2K cameras, or 50 4K Ultra HD cameras. The device also supports the Viewport feature, allowing it to display up to 16 simultaneous 4K live-view streams on a connected monitor while managing more than 150 Access Hub devices.
The recorder features a total of 8 drive bays for 2.5"/3.5" HDDs or SSDs. High-bandwidth connectivity is provided by a 10G SFP+ port and a 2.5 GbE RJ45 port. The built-in 200 W AC/DC power supply is backed up by a USP-RPS DC backup power port, protecting the network infrastructure in the event of a primary power failure.
Key Features:
- Performance: Supports up to 100 HD cameras / 70 2K cameras / 50 4K cameras
- Network Interfaces: 1× 10G SFP+ port and 1× 2.5 GbE RJ45 port
- Supported Drives: 8× drive bays for 2.5"/3.5" HDDs or SSDs with data protection support
- Streaming: Up to 16 simultaneous 4K live-view streams
- Access Control: Supports more than 150 Access Hubs
- Processor: Qualcomm® Kryo™ CPU (8-core, 4 nm architecture: 1× 3.2 GHz, 4× 2.8 GHz, 3× 2.0 GHz)
- Memory: 16 GB RAM
Technical Specifications
| Camera Support | (100) HD (70) 2K (50) 4K |
| Maximum Number of Simultaneous Live View Streams | 16 4K cameras |
| Access Hub Support | 150+ |
| Storage | (8) 2.5/3.5" Drive Bays |
| Data Protection | Yes |
| Network Interface | (1) 10G SFP+ Port (1) 2.5 GbE RJ45 Port |
| Power Reliability and Redundancy | Yes |
| Enclosure Form Factor | Rack Mount (2U) |
| Access Control Support | Yes |
| Management Applications | UniFi Protect UniFi Access UniFi Connect |
| Supported Hard Drive Capacity | Supports (8) 2.5/3.5" HDD / SSD drives |
| Maximum Drive Power Budget | 155W |
| Maximum Power Consumption | 200W |
| Power Method | (1) Universal AC Input, 100–240V AC, max. 3A, 50/60 Hz (1) USP-RPS DC Input, 11.5V DC |
| Power Supply | Internal AC/DC, 200W |
| Processor | Qualcomm® Kryo™ CPU based on Arm® Cortex® technology (4 nm) (1) Prime Core (3.2 GHz) (4) Performance Cores (2.8 GHz) (3) Efficiency Cores (2.0 GHz) |
| RAM | 16 GB |
| Management | Ethernet Bluetooth |
| LED Indicators | Ethernet SFP+ RPS HDD System |
| Application Requirements | UniFi Protect: version 7.1.55 or later UniFi Access: version 4.2.16 or later |
Other | |
| Dimensions | 442.4 x 87.4 x 325 mm (17.4 x 3.4 x 12.8") |
| Weight | 8.4 kg (18.5 lb) |
| Enclosure Material | SGCC Steel |
| Mounting Bracket Material | SGCC Steel |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% (Non-condensing) |
| NDAA Compliance | Yes |
| Certifications | CE, FCC, IC |
Ubiquiti Network Video Recorder G2 Pro - Frequently Asked Questions (FAQ)
The Network Video Recorder G2 Pro is designed for larger deployments. It offers 8 drive bays for significantly greater storage capacity, supports more cameras, and includes built-in Edge AI capabilities.
Yes. The Network Video Recorder G2 Pro supports the UniFi Access application, allowing you to manage both cameras and door access control from a single device.
Yes. The Network Video Recorder G2 Pro supports migration from existing UniFi Protect deployments. The migration process may vary depending on the system configuration, backup availability, and software version.
The Network Video Recorder G2 Pro includes built-in Edge AI capabilities, including:
- Natural language search
- Object indexing in the "Find Anything" tool
- Person recognition and re-identification
- Image-based search
Yes. For the most demanding deployments with heavy camera activity, adding one or more AI Key modules is recommended to increase the system's processing power. This reduces Edge AI processing latency and helps ensure that no events are missed.
The AI Key module also provides AI-generated summaries (AI Summaries), speech transcription, and support for face recognition and license plate recognition on G4 and G5 series cameras.
Yes. AI Port provides intelligent detections, face recognition, and license plate recognition for third-party cameras as well as older-generation UniFi cameras.
Learn more: Protect AI Port - Frequently Asked Questions (FAQ)
Yes. The Network Video Recorder G2 Pro includes an integrated Viewport module powered by the built-in HDMI output. In the Protect application, you can configure a multi-camera view (multi-view) and assign it to the Viewport output for direct live monitoring.
The Network Video Recorder G2 Pro features 10G SFP+ connectivity and 2.5 GbE RJ45 ports, enabling it to handle very high data throughput for smooth recording and multi-user playback. The device supports deployments of up to:
- 50 4K cameras
- 70 2K cameras
- 100 HD cameras
For safety reasons, it is recommended to use the included rack rails or dedicated UniFi Sliding Rack Rails. Standard rack ears can support the device itself, but the total weight increases significantly once hard drives are installed.
When installing the device in a 2-post rack that does not support rack rails, a rack shelf should be used to provide additional support from below.
