9.00 -17.00

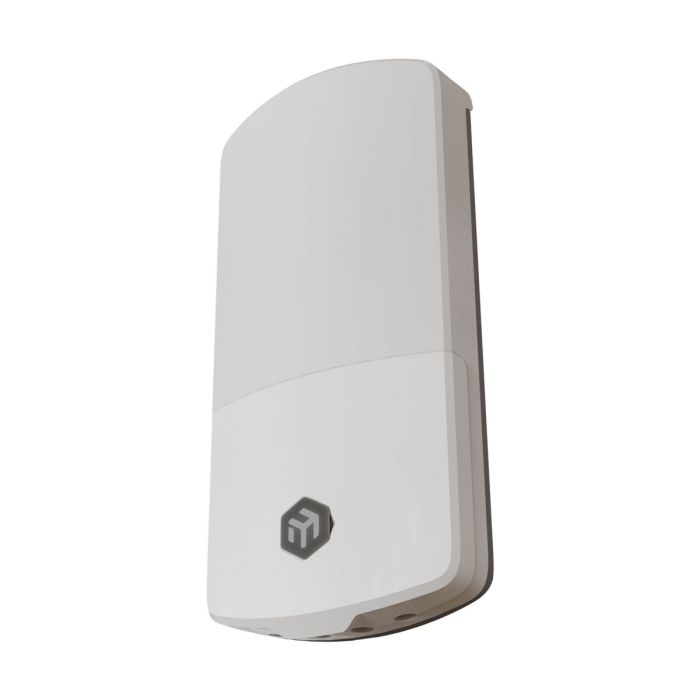

MikroTik wAP ax LTE7 kit - wAPGR-5HaxD2HaxD&R11e-LTE7
| SKU del fabricante | wAPGR-5HaxD2HaxD&R11e-LTE7 |
|---|---|
| Fabricante | Mikrotik |
The MikroTik wAP ax LTE7 kit is a weather- and vandal-resistant (IP66) outdoor access point that combines dual-band Wi-Fi 6 with a fast LTE Cat 7 modem with carrier aggregation. Thanks to the powerful RouterOS v7 operating system and two Gigabit Ethernet ports, the device guarantees stable and secure connectivity in the most demanding locations.
MikroTik wAP ax LTE7 kit – Outdoor Wi-Fi 6 access point with LTE modem
MikroTik wAP ax LTE7 kit (wAPGR-5HaxD2HaxD&R11e-LTE7) is a new, improved generation of the popular outdoor access point. The device combines a dual-band Wi-Fi 6 (802.11ax, 2x2 MIMO) radio module with a Cat. 7 LTE cellular modem. The heart of the device is the dual-core ARM IPQ-5010 processor (800 MHz) supported by 256 MB of RAM, which, combined with the RouterOS v7 operating system, guarantees stable operation, high routing performance and trouble-free operation of encrypted VPN tunnels. Improved high-gain antennas (6 dBi for 2.4 GHz and 7 dBi for 5 GHz) ensure excellent signal coverage both inside buildings and in large areas. open.
The key improvement in this version is the use of the LTE Category 7 module (R11e-LTE7). It allows for aggregation of two bands (2xCA), which translates into download speeds of up to 300 Mb/s and twice as fast upload speeds (up to 100 Mb/s) compared to older models. The modem supports an extended list of frequencies, including the B28 (700 MHz) and B32 (1500 MHz) bands, which significantly improves connection stability and performance in heavily loaded base stations. Wired communication is provided by two Gigabit Ethernet ports, one of which supports power supply via PoE-in. Alternatively, the device can also be powered using a standard DC socket.
The device has retained its original appearance, but the housing has been reinforced and now meets IP66 tightness standards, guaranteeing complete resistance to weather conditions (including temperatures from -30°C to +70°C). The design includes vandal-resistant features. A special recess on the back of the housing makes it easier to precisely drill a hole for cables, which allows for Aesthetic, secure wall mounting with cabling completely hidden beneath the device.
Key Features
-
Wireless Network: Dual-Band Wi-Fi 6 (802.11ax), Dual-Chain (2x2 MIMO)
- Cellular Modem: citation-end-20"> LTE Cat 7 (300 Mb/s DL, 100 Mb/s UL), band aggregation (2xCA)
- Supported LTE bands: Including: 1, 3, 7, 8, 20, as well as 28 (700 MHz) and 32 (1500 MHz(
- Performance: Dual-core ARM 800 MHz processor, 256 MB RAM, RouterOS v7 (Level) 4)
- Wired interfaces: 2× Gigabit Ethernet port (10/100/1000 Mb/s)
- Power supply: PoE-in or DC jack
- Wi-Fi antennas: Integrated, high gain: 6 dBi (2.4 GHz) and 7 dBi (5 GHz)
- Design: Weather-resistant IP66 housing, vandal-proof.
Technical Specifications
| Product Code | wAPGR-5HaxD2HaxD&R11e-LTE7 |
| Processor (CPU) | Dual-Core IPQ-5010 800 MHz |
| Processor Architecture | ARM 64-bit |
| RAM Capacity | 256 MB |
| Memory Type RAM | DDR3L |
| Built-in Memory (Storage) | 128 MB NAND |
| Number of 1G Ethernet Ports | 2 |
| MiniPCIe Slots | 1 |
| Wireless Interface Model | IPQ-5010 |
| Wireless Network | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Antenna gain | 6 dBi (2.4 GHz), 7 dBi (5 GHz) |
| LTE modem | R11e-LTE7 |
| TAC | 35312597 |
| LTE category | 7 (Download: 300 Mbps; Upload: 100 Mbps) |
| MIMO DL (Download) | 2x2 |
| MIMO UL (Upload) | 1x1 |
| LTE FDD Bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz) |
| LTE TDD Bands | 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) |
| 3G Category | R8 (Download: 42.2 Mbps; Upload: 5.76 Mbps) |
| 3G Bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz) |
| Operating System | RouterOS v7, License Level 4 |
Power Supply |
|
| Number of DC Inputs | 2 (DC Socket, PoE-In) |
| DC Socket Input Voltage | 12-57 V |
| PoE-In input voltage | 18-57 V |
| Power supply nominal voltage | 24 V |
| Power supply nominal current | 0.8 A |
| PoE-in | 802.3af/at |
| Max. Power Consumption | 13 W |
| Power Supply | 24 V 0.8 A Power Supply Gigabit PoE Injector |
Other |
|
| Included Parts |
Hose Clamp |
| Dimensions | 229 x 113 x 43 mm |
| Operating temperature | -30°C to +70°C |
| SKU del fabricante | wAPGR-5HaxD2HaxD&R11e-LTE7 |
|---|---|
| Fabricante | Mikrotik |
| GPSR contacto | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
