Mikrotik KNOT LR9G kit - IoT Gateway with LoRa® (RB924iR-2nD-BT5&BG770A&R11e-LR9G)

MikroTik KNOT LR9G kit – Industrial IoT gateway with LoRa, LTE CAT-M, and GPS support

MikroTik KNOT LR9G kit (RB924iR-2nD-BT5&BG770A&R11e-LR9G) is a versatile IoT gateway designed to support extensive telemetry and industrial automation systems. The device aggregates data from LoRa wireless networks (915 MHz version) and transmits it using the cost-effective LTE CAT-M1 and NB-IoT (NB2) cellular standards. The device can simultaneously maintain active LTE connections and precisely track location via an integrated GNSS/GPS module. This makes the gateway a reliable element in mobile network infrastructure, facilitating the monitoring of resources in transport and distributed measurement stations.

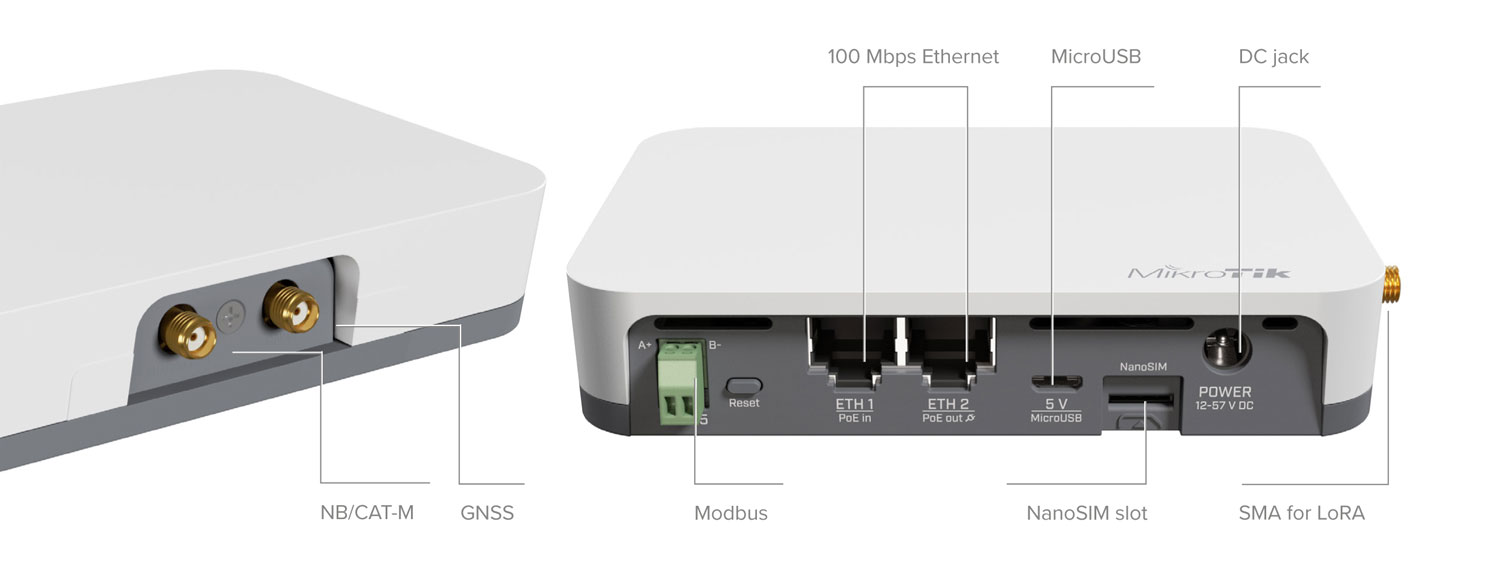

At the heart of the unit is a QCA9531 processor clocked at 650 MHz, supported by 64 MB of RAM and 128 MB of built-in NAND memory. The management environment is RouterOS v7 with a Level 4 license, which allows for the implementation of routing rules, custom scripts, and secure tunnels for sensor data. The device is equipped with a set of physical communication interfaces: two Fast Ethernet ports (10/100 Mbps), an RS485 serial port with Modbus support, GPIO control pins, Bluetooth 5.2 modules, and a local Wi-Fi 4 (2.4 GHz) access point. Additionally, the device is equipped with separate, standard SMA female antenna connectors for LTE, GPS, and LoRa modules.

The gateway has three independent power inputs: a standard DC jack (12–57 V), a MicroUSB port (5 V), and an 802.3af/at-compliant PoE-in power input (18–57 V). Additionally, a second RJ45 port allows for PoE-out (802.3af-compliant) power to be passed to peripheral devices, such as IP surveillance cameras or additional environmental sensors. The design, with a base power consumption of just 6W, has been designed for trouble-free operation in a wide temperature range (from -40°C to 70°C) and has an IP20 protection class.

Key features:

• Processor and memory: QCA9531 (1 core, 650 MHz), 64 MB RAM, 128 MB NAND.

• Operating System: RouterOS v7 (Level 4 License).

• IoT / WAN Connectivity: LoRa module (915 MHz), LTE CAT-M1 / NB2 modem, GNSS/GPS, Bluetooth 5.2.

• Network and Contact Interfaces: 2x RJ45 10/100 Mbps, Wi-Fi 4 (2.4 GHz, 802.11b/g/n, 300 Mbps), RS485 (Modbus), GPIO.

• Antenna connectors: SMA Female dedicated to LTE, GPS, and LoRa interfaces.

• Power supply (inputs): DC Jack (12-57 V), PoE-IN 802.3af/at (18-57 V), MicroUSB (5 V).

• Power (Outputs): PoE-out 802.3af (on Ether2 port).
