MikroTik KNOT Embedded LTE4 Global - EG25-G&KNe
| SKU del fabricante | EC25-G&KNe |
|---|---|
| Fabricante | Mikrotik |
The MikroTik KNOT Embedded LTE4 Global is an industrial IoT gateway with LTE Cat4, BLE, and GNSS connectivity. Ideal for automation, it offers eSIM support and GPIO ports.

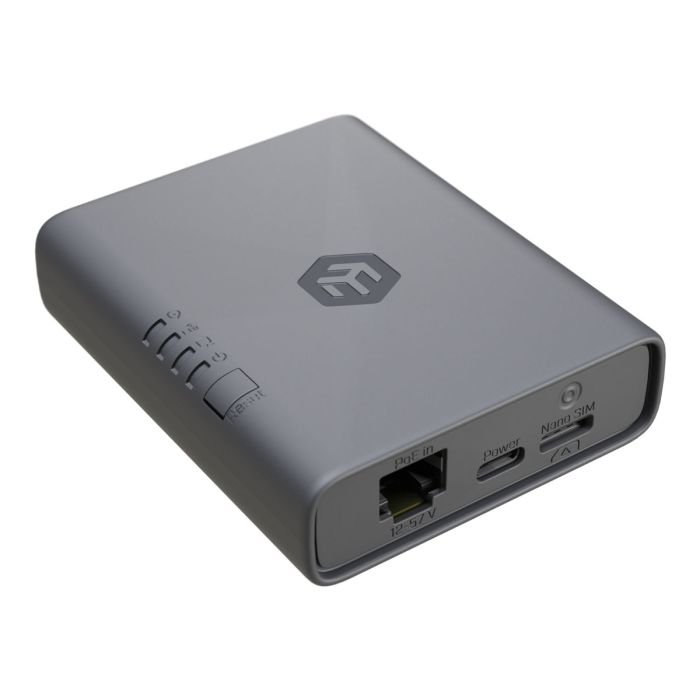

MikroTik KNOT Embedded LTE4 Global – Industrial IoT Gateway with LTE, BLE, and GNSS
MikroTik KNOT Embedded LTE4 Global (EG25-G&KNe) is a compact, industrial network gateway designed for integrators, automation specialists, and IoT system developers. The "Global" version offers extended support for LTE bands and is PTCRB and AT&T certified, making it ready for deployment in markets outside of EMEA (including North America). The device provides reliable LTE Cat4 cellular connectivity, and thanks to built-in eSIM support and a standard Nano SIM slot, it allows for quick activation of a data plan with your carrier.
The device is a communication hub for IoT devices. The built-in Bluetooth 5.1 scanner supports Long Range and Extended Advertising, enabling reliable communication with MikroTik tags and other BLE sensors. Additionally, the device has a GNSS module (supporting GPS, Galileo, Glonass, BDS, and QZSS) for precise location tracking. Wired communication is handled by a gigabit Ethernet port with PoE-in support, while a dedicated GPIO connector (24V tolerant and offering digital/analog inputs and an OD output) enables direct integration with simple automation and monitoring systems.
KNOT Embedded is ideal for space-constrained environments where reliability is key – such as vending machines, coffee machines, retail kiosks, control cabinets, and smart city infrastructure. Measuring just 90 x 70 x 22 mm, the device is DIN rail-mountable and can operate in extreme temperatures from -40°C to +70°C. At the heart of the device is a 32-bit ARM processor (800 MHz) and 256 MB of RAM, running RouterOS v7 (Level 3 license). The device requires external antennas connected via available SMA connectors.
Key Features
-
Mobile Connectivity: LTE Cat4 (Global version, certified by AT&T and PTCRB, among others)
-
SIM Cards: Two connectivity options: built-in eSIM and physical Nano SIM slot
-
IoT and location: Bluetooth 5.1 (sensor and tag scanner) and GNSS location receiver
-
Interfaces: 1× Gigabit Ethernet (with PoE-in support)
-
Automation: 24V tolerant GPIO connector (digital/analog inputs, OD output)
-
Antenna connectors: SMA (the device requires external antennas selected for the conditions)
-
Operating system: RouterOS v7 (Level 3 license)
-
Dimensions and mounting: 90 × 70 × 22 mm, DIN rail mountable.
-
Operating conditions: Resistant to harsh environmental conditions (from -40°C to +70°C)
Technical Specifications
| Product Code | EG25-G&KNe |
| Processor (CPU) | ARM 32-bit 800 MHz |
| RAM Capacity | 256 MB |
| RAM Type | DDR |
| Built-in Memory (Storage) | 256 MB, NAND |
| Number of 1G Ethernet Ports | 1 |
| GNSS Interface Model | EG25-G |
| GNSS Standard | Galileo, GPS, Glonass, BDS, QZSS |
| RF Connector Type | SMA Female |
| SIM Slots | Nano SIM, eSIM |
| Version Bluetooth | 5.1 |
| MIMO DL (Download) | 2x2 |
| MIMO UL (Upload) | 1x1 |
| Operating System | RouterOS v7, License Level 3 |
Mobile Network (KNOT Embedded LTE4 Global / EG25-G Bands) |
|
| Modem LTE | EG25-G |
| TAC | 01673800 |
| LTE Category | 4 (Download: 150 Mbps; Upload: 50 Mbps) |
| LTE FDD Bands | 1 (2100 MHz) / 2 (1900 MHz) / 3 (1800 MHz) / 4 (1700 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 12 (700 MHz) / 13 (700 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800 MHz) / 25 (1900 MHz) / 26 (850 MHz) / 28 (700 MHz) |
| LTE TDD Bands | 38 (2600 MHz) / 39 (1900 MHz) / 40 (2300 MHz) / 41 (2500 MHz) |
| 3G Category | R8 (Download: 42.2 Mbps; Upload: 5.76 Mbps) |
| 3G Bands | 1 (2100 MHz) / 2 (1900 MHz) / 4 (1700 MHz) / 5 (850 MHz) / 6 (850 MHz) / 8 (900 MHz) / 19 (800 MHz) |
| Category 2G | Class 12 |
| 2G Bands | 2 (1900 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz) |
Power |
|
| Number of entries DC | 2 (PoE-In, USB Type-C (for power only)) |
| PoE-In input voltage | 12-57 V |
| USB Type-C input voltage | 5 V |
| Power supply nominal voltage | 5 V |
| Power supply nominal current | 0.8 A |
| PoE-In | 802.3af/at |
| Max. Power Consumption | 6 W |
Other |
|
| Dimensions | 90 x 70 x 22 mm |
| Operating Temperature | -40°C to +70°C |
| SKU del fabricante | EC25-G&KNe |
|---|---|
| Fabricante | Mikrotik |
| GPSR contacto | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
