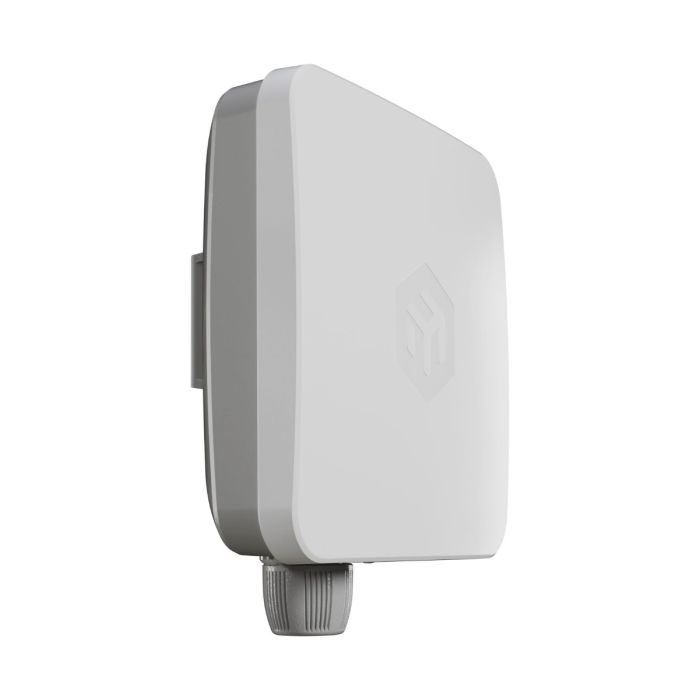

MikroTik SXTsq Embedded LTE4 - External LTE4 router with eSIM (EC25-EU&SXTsq)
| SKU del fabricante | EC25-EU&SXTsq |
|---|---|
| Fabricante | Mikrotik |
The MikroTik SXTsq Embedded LTE4 is an outdoor router with a 9 dBi antenna and a Cat4 modem. It supports eSIM and has an IP67 enclosure, ensuring stable internet access outside the city.
MikroTik SXTsq Embedded LTE4 – Outdoor LTE4 Router with eSIM
MikroTik SXTsq Embedded LTE4 (EC25-EU&SXTsq)is a cost-effective router designed for outdoor installation. The device has an integrated 2x2 MIMO directional antenna with a gain of 9 dBi, which significantly improves signal stability from operator towers. This device is designed for locations without cable internet access – it's perfect for rural areas, recreational plots, or construction sites. The compact housing meets IP67 waterproofing standards, ensuring reliable operation in harsh weather conditions.
The device features integrated eSIM technology. This feature allows you to remotely add and switch tariff plans without having to physically insert the card, which is useful for installations in hard-to-reach places. The manufacturer also includes a classic slot for a physical Nano SIM card. Smooth operation is ensured by a 32-bit ARM Cortex A7 processor (clocked up to 1.2 GHz) paired with 256 MB of DDR RAM and 512 MB of internal NAND flash.
The router runs the RouterOS v7 operating system (with a Level 3 license). This gives administrators access to professional tools such as advanced routing, a firewall, and VPN tunnel configuration. The built-in Category 4 LTE modem offers download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps. A single cable connects to the local network and powers the device, thanks to a gigabit Ethernet port with PoE-in support (12-57V). The device is extremely energy-efficient and consumes a maximum of 5 W of power.
Key Features
-
LTE Communication: Built-in Cat 4 modem (download up to 150 Mbps, upload up to 50 Mbps).
-
SIM Flexibility: Innovative support for virtual eSIM cards and a classic Nano slot SIM.
-
Antenna parameters: Integrated, directional antenna with a gain of 9 dBi (2x2 MIMO DL / 1x1 UL).
-
Local network: One high-speed Gigabit Ethernet communication port.
-
Performance: ARM Cortex A7 processor (up to 1.2 GHz), 256 MB RAM, and RouterOS v7 software.
-
Power Supply: PoE-In technology (voltage 12-57 V, 802.3af/at compliant), extremely low power consumption (up to 5 W).
-
Operating Conditions: Weather resistance (IP67 certified), temperature support from -40°C to +70°C.
-
Kit composition: Router, 24 V 0.38 A plug-in power supply, gigabit PoE adapter, and metal cable tie.
Technical specifications
| Processor (CPU) | ARM 32-bit - Cortex A7 up to 1.2 GHz |
| RAM capacity | 256 MB |
| RAM Type | DDR |
| Built-in Memory (Storage) | 512 MB NAND |
| Number of 1G Ethernet Ports | 1 |
| SIM Slots | Nano SIM, eSIM |
| LTE Antenna Gain | 9 dBi |
| System Operating System | RouterOS v7, License Level 3 |
Mobile Network |
|
| LTE Modem | EC25-EU |
| TAC | 86554604 |
| LTE Category | 4 (Download: 150 Mbps, Upload: 50 Mbps) |
| MIMO DL (Download) | 2x2 |
| MIMO UL (Upload) | 1x1 |
| LTE FDD Bands | 1 (2100 MHz) / 3 (1800 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28A (700 MHz) |
| LTE TDD Bands | 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) |
| 3G Category | R8 (Download: 42.2 Mbps, Upload: 5.76 Mbps) |
| 3G Bands | 1 (2100 MHz) / 8 (900MHz) |
| Category 2G | Class33 |
| 2G Bands | 3 (1800 MHz) / 8 (900 MHz) |
Power |
|
| DC input | PoE-In |
| PoE-In input voltage | 12-57 V |
| Power Supply Nominal Voltage | 24 V |
| Power Supply Nominal Current | 0.38 A |
| PoE-In | 802.3af/at |
| Maximum Power Consumption | 5 W |
Other |
|
| Included Parts | 24 V 0.38 A Power Supply, Gigabit PoE Injector, Hose Clamp |
| Ingress Protection Class | IP67 |
| Dimensions | 129 x 129 x 34 mm |
| Operating Temperature | -40°C to +70°C |
| SKU del fabricante | EC25-EU&SXTsq |
|---|---|
| Fabricante | Mikrotik |
| GPSR contacto | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
