UISP Dish Mini (UISP-Dish-Mini)
| SKU del produttore | UISP-Dish-Mini |
|---|---|
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 2 |
Ubiquiti UISP Dish Mini is a compact, high‑performance 5–7 GHz dish antenna offering 26 dBi gain, IPX6 weather protection, and direct radio feed compatibility — designed for long‑range point‑to‑point wireless links

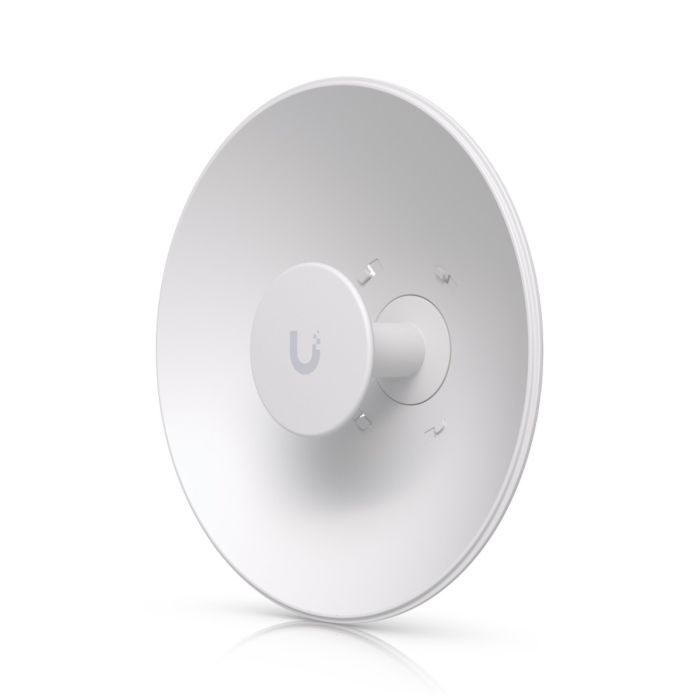

Ubiquiti UISP Dish Mini (UISP‑Dish‑Mini)
Product description
UISP Dish Mini is a compact dish antenna operating in the 5.15–6.875 GHz frequency range. It delivers a focused, long-range signal with **26 dBi gain**, designed for point-to-point (PtP) wireless deployments. The dish supports direct mounting of compatible radios such as Wave‑MLO5, AF‑5XHD, and RP‑5AC‑Gen2.
Main features
- Frequency range: 5.15–6.875 GHz
- Gain: 26 dBi
- Dual-linear polarization
- 3 dB beamwidth: 5.8°–9°; 6 dB beamwidth: 7.6°–12.5°
- Direct radio connection with secure latches
- Robust design: IPX6-rated, wind survivability up to 200 km/h
- Built-in mounting kit with ±20° elevation adjustment
- Fully NDAA-compliant
Technical specifications
| SKU | UISP‑Dish‑Mini |
| Frequency range | 5.15–6.875 GHz |
| Gain | 26 dBi |
| Beamwidth (3 dB) | Azimuth 5.8–9°, Elevation 5.8–9° |
| Beamwidth (6 dB) | Azimuth 7.6–12.5°, Elevation 7.6–12.5° |
| Polarization | Dual‑linear |
| Cross‑pol isolation | 15 dB |
| Max VSWR | 2:1 |
| Wind survivability | Up to 200 km/h |
| Wind loading | 348 N at 200 km/h |
| Elevation adjustment | ±20° |
| Pole diameter | 1.25–3″ (32–76 mm) |
| Dimensions (dish only) | Ø420 × 140 mm |
| Weight (dish only) | 1.95 kg |
| Casing | Powder-coated galvanized steel + UV-stabilized polycarbonate |
| Mounting hardware weight | 1 kg |
| Weather rating | IPX6 |
| NDAA compliance | Yes |
Usage and compatibility
Perfect for compact PtP links in rural, suburban, or industrial settings. The dish accommodates a wide range of 5 GHz radios without extra cables and supports resilient weatherproof mounting.
Summary
UISP Dish Mini offers a compact, durable, and efficient solution for long-range wireless bridging with easy setup and radio integration.
