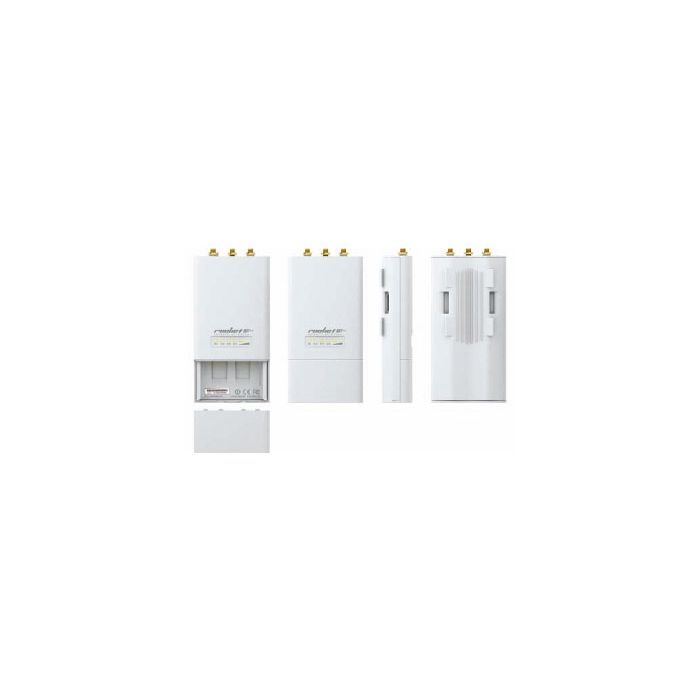

Ubiquiti AirMax Rocket M5 GPS
| SKU del produttore | RM5-GPS |
|---|---|
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 10 |
 |
Carrier Class Ubiquiti AirMax BaseStation with GPS Synchronization
Rugged, hi-power, linear 2x2 MIMO radios specifically designed for outdoor PtP bridging and PTMP AirMax basestation applications.
Integrated AirMax Technology
Unlike standard WiFi protocol, Ubiquiti's
Time Division Multiple Access (TDMA)
AirMax protocol allows each client to send
& receive data using pre-designated time
slots scheduled by an intelligent AP
controller.
This "time slot" method eliminates hidden
node collisions & maximizes air time
efficiency. It provides many magnitudes of
performance improvements in latency,
throughput, & scalability compared to all
other outdoor systems in its class.
GPS Synchronization
Rocket M GPS units have integrated Ubiquiti
AirSync technology. AirSync enhances the
hardware and software of Rocket M to
utilize GPS signals for precision timing.
All Rocket M GPS products have integrated Ubiquiti AirSync technology, which enables units to utilize GPS signals for precision timing. |
Just like the original Rocket M Series, Rocket M GPS units seamlessly integrate with AirMax BaseStation and Rocket Antennas. |
AirOS was upgraded to take full ad- vantage of the new GPS hardware in Rocket M GPS units; easily manage/ monitor GPS satellite signals. |
Synchronized transmission among Rocket M GPS powered BaseStations effectively eliminates co-location interference. |
| Operating Frequency | 5470-5825 |
| Processor Specs | Atheros MIPS 24KC, 400MHz |
| Memory Information | 64MB SDRAM, 8MB Flash |
| Networking Interface | 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet |
| Enclosure Size | 17 x 8 x 3cm (length, width, height) |
| Weight | 0.5kg |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Mounting Kit | Pole Mounting Kit included |
| Power Supply | 24V, 1A POE Supply included |
| Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) |
| Operating Temperature | -30C to 75C |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| RF Connector | 2x RP-SMA and 1x SMA (Waterproof) |
| Max Power Consumption | 8 Watts |
| SKU del produttore | RM5-GPS |
|---|---|
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 10 |
| GPSR contatto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
