Ubiquiti - Enterprise Fortress Gateway (EFG)
| SKU del produttore | EFG |
|---|---|
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 2 |
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Accessori e componenti aggiuntivi:
UBIQUITI Enterprise Fortress Gateway (EFG)

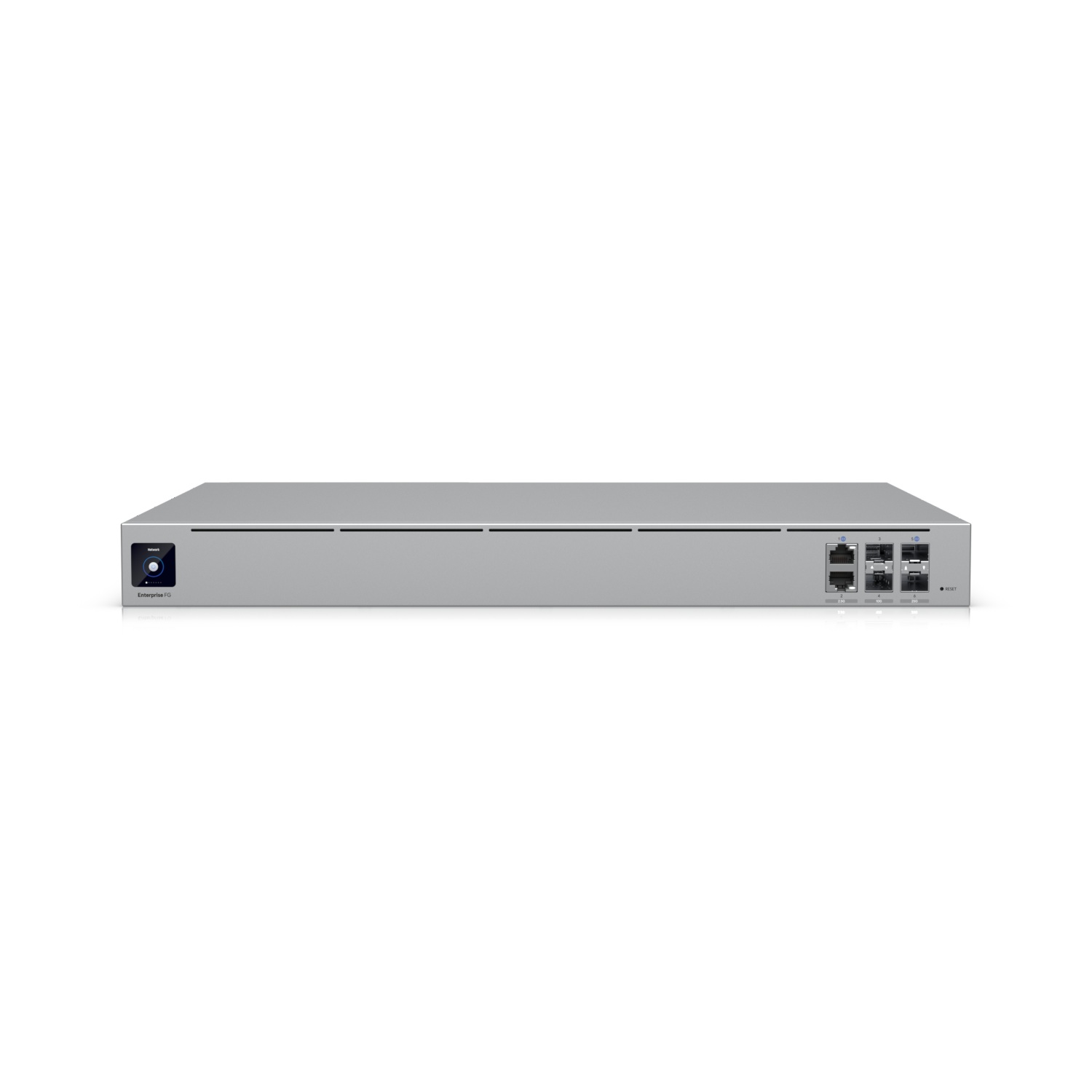

Product Description
The Enterprise Fortress Gateway (EFG) is a high-performance 25G cloud gateway designed for large-scale UniFi deployments. It supports over 500 UniFi devices and 5,000 clients, offering advanced routing, security, and high availability features. With 12.5 Gbps IDS/IPS throughput and license-free real-time SSL/TLS inspection, the EFG ensures robust network protection and performance.
Key Features
- Supports 500+ UniFi devices and 5,000+ clients
- 12.5 Gbps IDS/IPS throughput
- License-free real-time SSL/TLS inspection with NeXT AI
- Shadow Mode High Availability with automatic failover (VRRP)
- Dual hot-swappable 150W CRPS power supplies
- 1.3" touchscreen display
- Comprehensive VPN support: WireGuard, OpenVPN, L2TP, IPsec
- Advanced QoS and application-aware firewall
- Integration with UniFi Network for full-stack management
Technical Specifications
Hardware
| SKU | EFG |
| Dimensions | 442.4 x 43.7 x 325 mm |
| Weight | 6.5 kg |
| Enclosure Material | Aluminum CNC, SGCC steel |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| System Memory | 16 GB DDR4 DIMM |
| Management Interface | Ethernet, Bluetooth |
| Network Interfaces |
|
| Power Method | Universal AC input, 100–240V AC, 7A Max., 50/60 Hz |

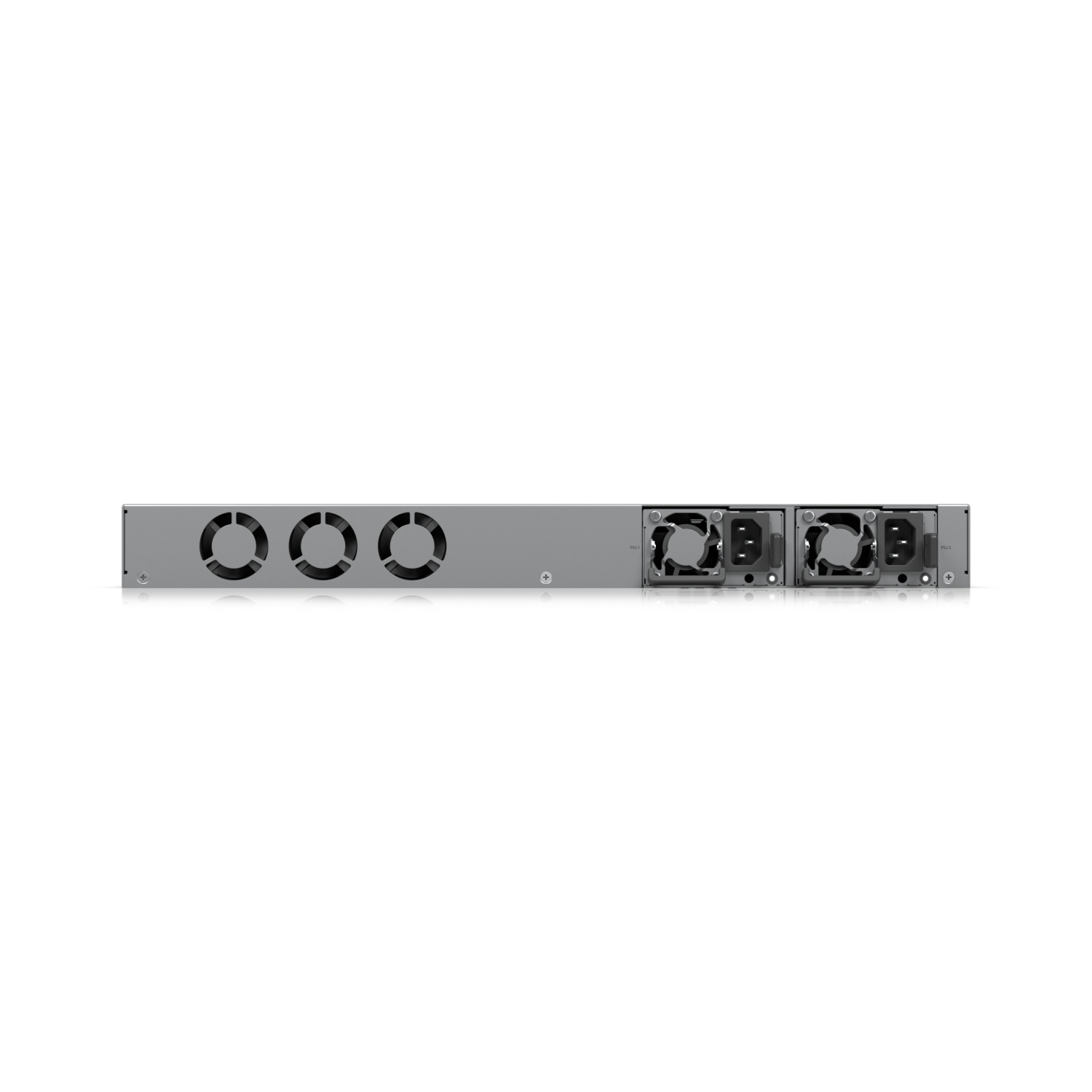

| Power Supply | (2) Hot-swappable 150W CRPS |
| Max. Power Consumption | 82W |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| Display | 1.3" touchscreen |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 5% to 95% non-condensing |
| Certifications | CE, FCC, IC |
Performance
| Firewall Throughput | 23.5 Gbps |
| IDS/IPS Throughput | 12.5 Gbps |
| Concurrent Sessions | 1 million |
| New Sessions per Second | 71,000 |
| SSL/TLS Inspection Sessions | 10,000 |
| IDS/IPS Signatures | 80,000+ |
VPN Performance
| UniFi Identity VPN | 1.2 Gbps |
| Teleport VPN | 1.2 Gbps |
| WireGuard | 1.2 Gbps |
| OpenVPN | 210 Mbps |
| L2TP | 280 Mbps |
| Site-to-Site VPN (IPsec) | 580 Mbps |
Applications and Compatibility
The EFG is ideal for enterprise environments requiring high-performance routing, advanced security, and seamless integration with UniFi Network. Its robust hardware and comprehensive feature set make it suitable for large-scale deployments with demanding network requirements.
Summary
Ubiquiti's Enterprise Fortress Gateway (EFG) delivers enterprise-grade performance and security, supporting extensive UniFi deployments with advanced features and high availability.
