TP-Link - VIGI C340-W
| SKU del produttore | VIGI C340-W |
|---|---|
| EAN | 4897098683675 |
| Produttore | TP-Link |

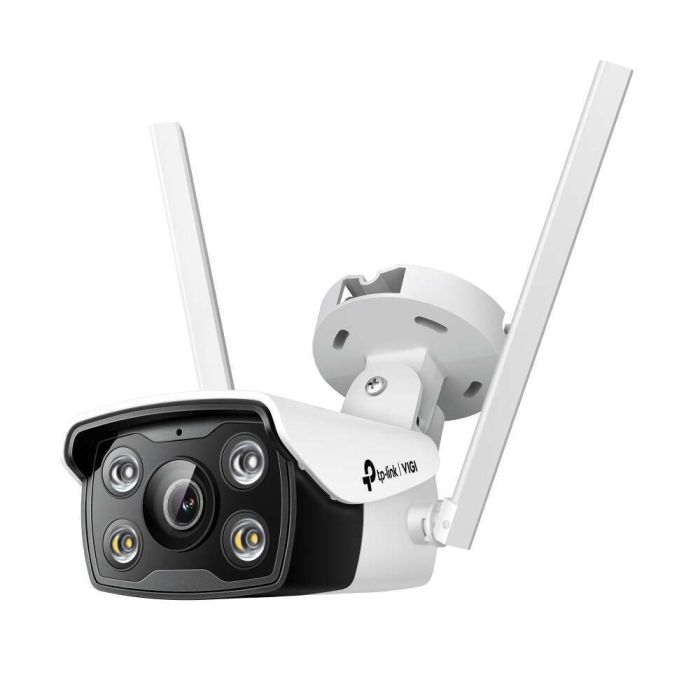

VIGI C340-W-VIGI 4MP fotocamera di rete Bullet, Wi-Fi a colori esterni, alimentata da POE, slot per schede SD
VIGI C340-W - VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera
TP-Link Vigi C340-W è una fotocamera IP con una risoluzione di 4 MPIX. È stato dotato di un modulo che consente la comunicazione wireless Wi-Fi, senza collegare un cavo Ethernet. Il diametro della lente è di 4 mm, l'angolo di visualizzazione è di 79 ° X 43 °, copre un'area relativamente piccola, ma compensa l'alta gamma di rilevamento. La fotocamera supporta molte funzioni utili, come il rilevamento intelligente (incluso il rilevamento del traffico), Smart IR (impedisce sottoesposto gli oggetti) o WDR. Un vantaggio importante è la moderna codifica H.265+, che riduce significativamente le dimensioni di un'immagine compressa, che risparmia spazio sul disco rigido. Il prodotto offerto è completamente adattato per essere utilizzato edifici esterni, è caratterizzato da un grado di protezione di IP66. La fotocamera ha uno slot microSD, quindi è possibile utilizzarlo senza un registratore IP e registrazioni di registrazione sulla scheda. Un ulteriore vantaggio è il microfono e l'altoparlante in costruzione: consentono la comunicazione vocale bilaterale. La fotocamera può essere gestita dal software VIGI, inclusa un'applicazione disponibile per dispositivi mobili con Android / iOS.
Specifiche tecniche:
| CAMERA | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: -90° to 90°, Tilt: -90° to 90° |
| ILLUMINATOR | |
|---|---|
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| WIRELESS | |
|---|---|
| Standards | IEEE 802.11b/g/n |
| WiFi Channels | UN: 1-13 US: 1-11 |
| Frequency | 2.4 GHz |
| Wireless Transmit Power | High |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Mornitor | N/A |
| Radio Bandwidth | Auto: N/A 20M: Yes 40M: Yes |
| Wireless Rate | 11Mbps(802.11b) 54Mbps(802.11g) 150/300Mbps(802.11n) |
| Wireless Security | PWPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.31 Kg |
| Gross Weight | 0.6 Kg |
| Power Supply | 9V DC/0.85A, 5.5mm Coaxial Power Plug |
| Antenna | Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 80× 173 × 71 mm (excluding antennas) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, R-NZ |
