TP-Link-EAP610

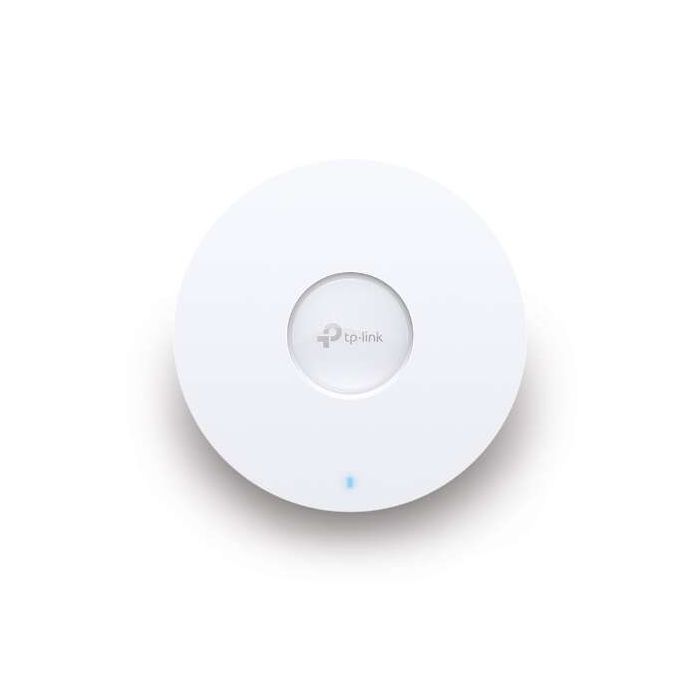

EAP610 Access point wireless dual band per montaggio a soffitto AX1800
EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
-
EAP610 WiFi 6 velocità: 574 Mbps simultanei su 2,4 GHz e 1201 Mbps su 5 GHz per un totale di velocità Wi-Fi di 1775 Mbps.
-
WiFi 6 ad alta efficienza: più dispositivi connessi possono essere collegati a EAP610 con velocità più elevate.
-
Gestione cloud centralizzata di EAP610: gestisci l'intera rete localmente o dal cloud tramite interfaccia utente Web o app Omada.
-
Omada Mesh: consente la connettività wireless tra punti di accesso per una portata estesa e un'implementazione flessibile.
-
Roaming senza interruzioni: anche i flussi video e le chiamate vocali non vengono influenzati quando gli utenti si spostano tra le posizioni dell'EAP610.
-
Alimentazione PoE+: supporta CC (adattatore incluso), PoE+ 802.3at e PoE passivo per installazioni EAP610 flessibili.
-
Design ultrasottile: il design elegante da Φ160 mm × 33,6 mm offre maggiore agilità.
-
Rete ospite sicura: insieme a molteplici opzioni di autenticazione (SMS/voucher, ecc.) e numerose tecnologie di sicurezza wireless.
Specifica tecnica:
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet (RJ-45) Port |
| Button | Reset |
| Power Supply | V2 and above: • 802.3at PoE • 48 V Passive PoE • 12 V / 1.5 A DC (Power Adapter included) |
| Power Consumption | V2 and above: • EU: 13.7 W (For PoE); 12.3 W (for DC) • US: 14.2 W (For PoE); 12.8 W (for DC) |
| Dimensions ( W x D x H ) | V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Mounting | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller |
| Cloud Access | Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP610 • Power Adapter • Ceiling/ Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| SKU del produttore | EAP610 |
|---|---|
| EAN | 4897098687772 |
| Produttore | TP-Link |
| GPSR contatto | TP-Link Polska Sp. z o.o. ul. Ożarowska 40/42, Duchnice 05-850, Poland support.pl@tp-link.com |
