RouterBoard (RBwAPR-2nD&R11e-LR9G) wAP LR9G kit & R11e-LR9G
| SKU del produttore | RBwAPR-2nD&R11e-LR9G |
|---|---|
| Produttore | Mikrotik |
| In un imballaggio collettivo | 20 |

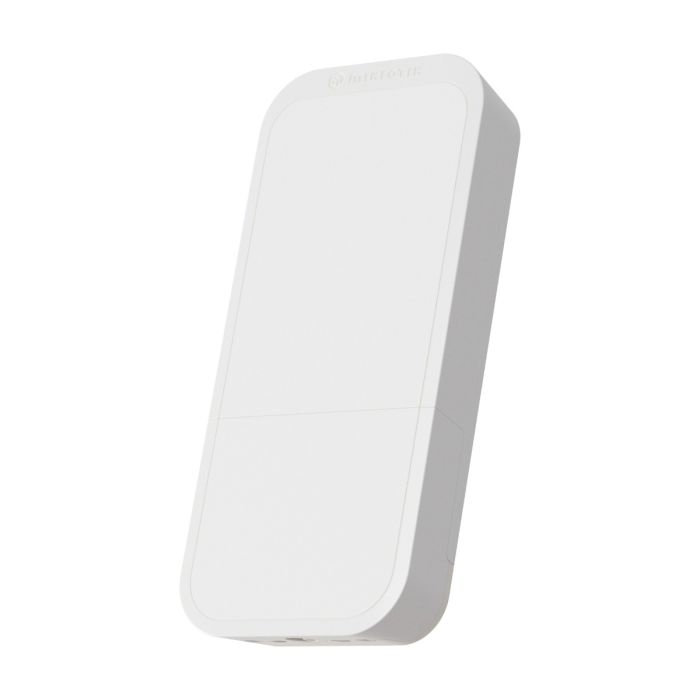

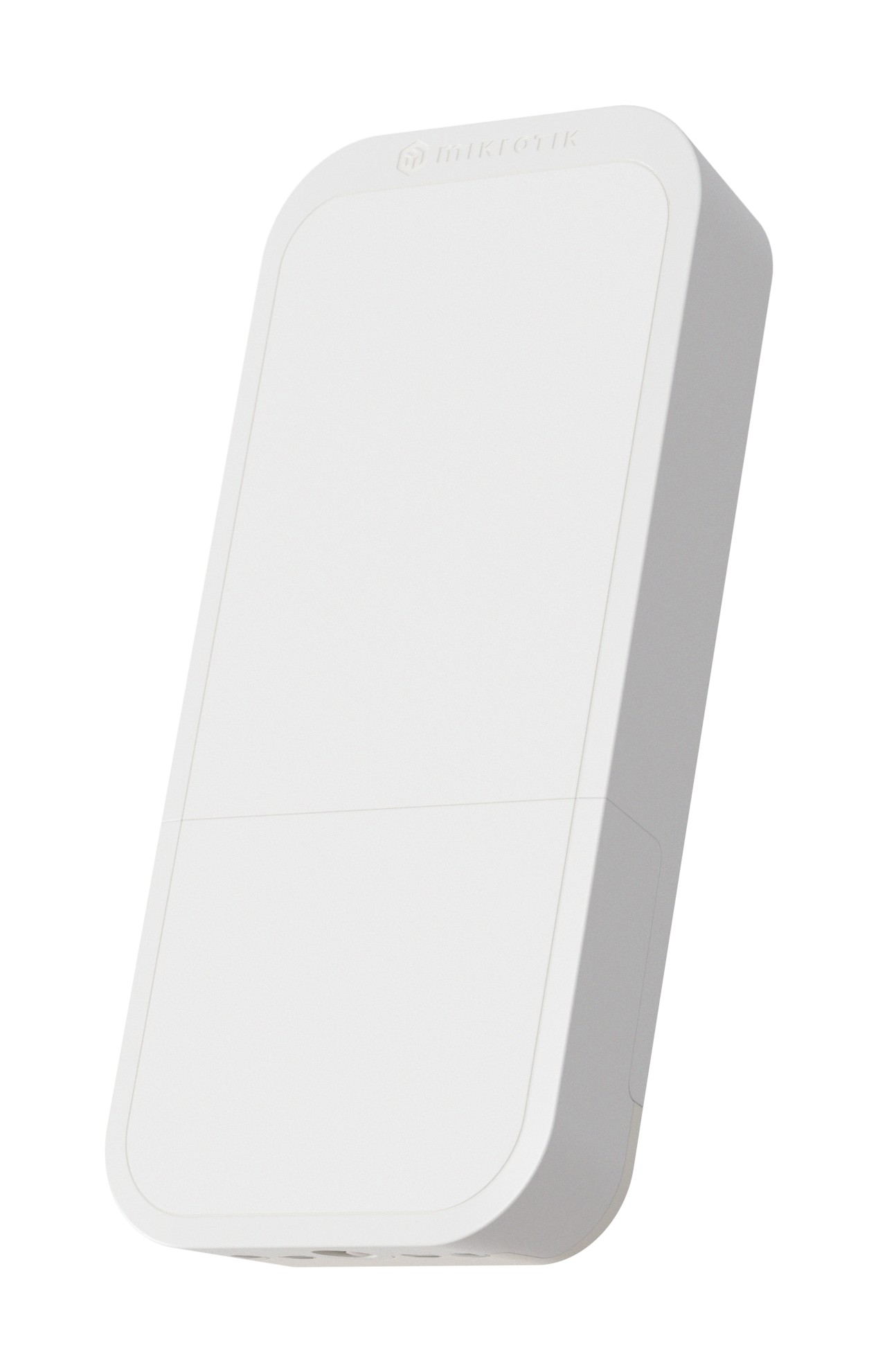

MikroTik wAP LR9G kit & R11e-LR9G (RBwAPR-2nD&R11e-LR9G)
Product Description
The MikroTik wAP LR9G kit is a robust, weatherproof LoRa® gateway designed for outdoor use in 915 MHz markets (US, Canada, Australia, Brazil, etc.), featuring a pre-installed UDP packet forwarder for seamless integration with public or private LoRa® networks like The Things Network. It includes 915 MHz LoRa® support, built-in GPS (MT3337V), 2.4 GHz Wi-Fi (802.11b/g/n), and a 100 Mbps Ethernet port with Passive PoE. Powered by a 600 MHz QCA9531 CPU, 64 MB RAM, and 16 MB Flash storage, it runs RouterOS v7 with License Level 4, offering advanced configuration options. The kit supports three power inputs (PoE-in, automotive, DC jack) and includes SMA female connectors for external LoRa®, GPS, or Wi-Fi antennas, with a maximum Rx sensitivity of -141 dBm for enhanced range. The R11e-LR9G is a miniPCIe LoRa® concentrator card with 915 MHz support, GPS, and low power consumption (1.3 W), compatible with any MikroTik device with a miniPCIe slot and USB lines. These devices are ideal for smart agriculture, industrial telemetry, and mobile IoT setups.
Main Features
- LoRa® 915 MHz with enhanced Rx sensitivity (-141 dBm) for long-range connectivity
- Built-in GPS (MT3337V) for precise location tracking
- 2.4 GHz Wi-Fi (802.11b/g/n) with 2 dBi antenna gain
- 100 Mbps Ethernet port with Passive PoE support

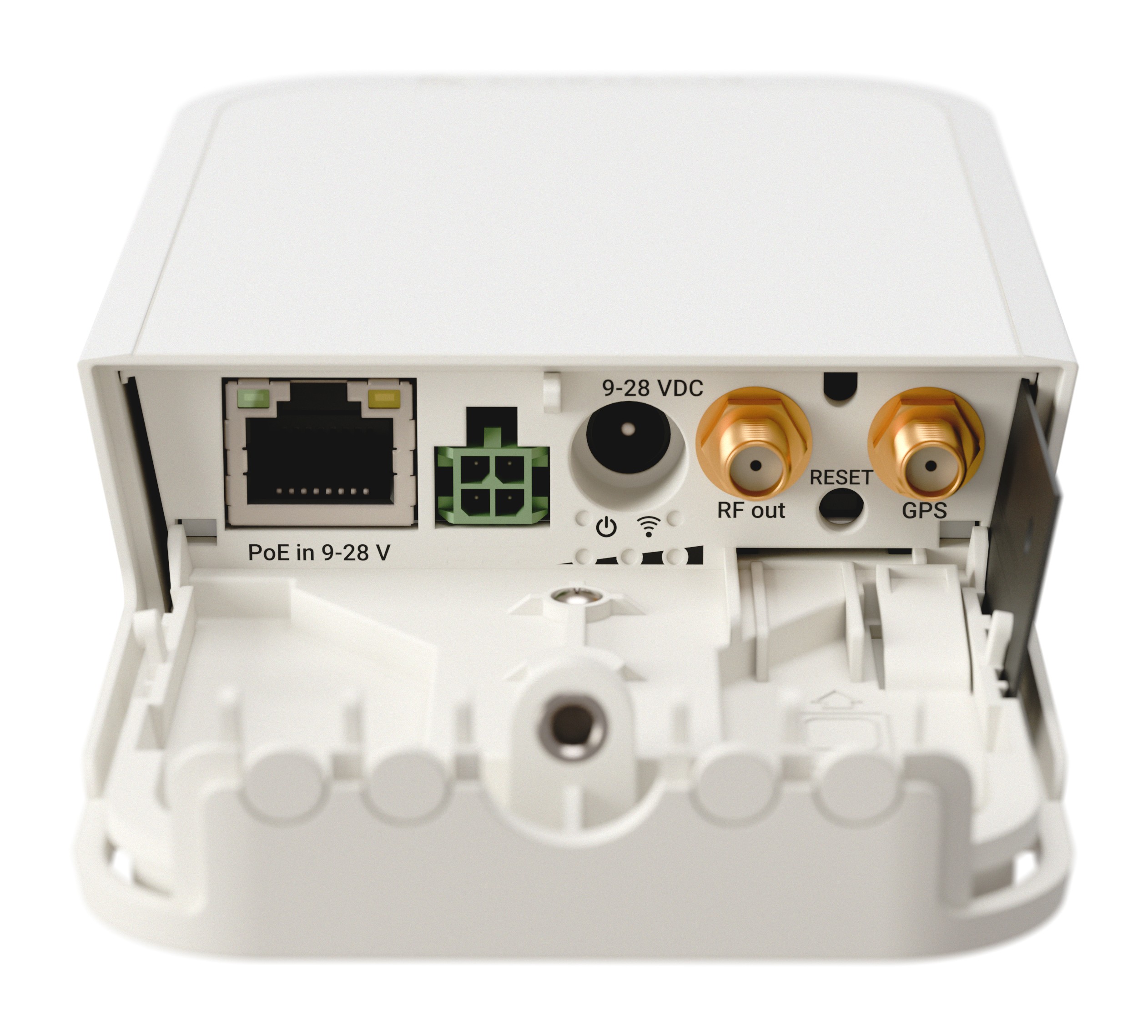

- Three power inputs: PoE-in (9-28 V), automotive (12-30 V), DC jack (9-28 V)
- R11e-LR9G miniPCIe card for LoRa® connectivity in MikroTik devices
- RouterOS v7 with License Level 4 for advanced networking
- Weatherproof design with operating temperature from -40°C to +60°C (wAP LR9G kit)
- SMA female connectors for external LoRa®, GPS, and Wi-Fi antennas
Technical Specification (wAP LR9G kit)
| Cod.Art. | RBwAPR-2nD&R11e-LR9G |
| CPU | QCA9531, 600 MHz, Single-core |
| Architettura della CPU | MIPSBE |
| RAM | 64 MB DDR2 |
| Immagazzinamento | 16 MB Flash |
| Interfacce di rete | (1) 10/100 Mbps Ethernet RJ45 port (Passive PoE) |
| Senza fili | 802.11b/g/n (2.4 GHz) |
| Wireless Interface Model | QCA9531 |
| Guadagno dell'antenna | 2 dBi, 360° beam width |
| Connettore antenna | SMA female (LoRa, GPS, Wi-Fi) |
| GNSS Standard | GPS (MT3337V) |
| LoRa Band | 915 MHz (AU915-928, US902-928, AS923, KR920-923) |
| Max Rx Sensitivity | -141 dBm |
| Power Inputs | (3) PoE-in (9-28 V), Automotive (12-30 V), DC jack (9-28 V) |
| Consumo massimo di energia | 7 W |
| Dimensioni | 185 x 85 x 30 mm |
| Temperatura di esercizio | -40°C to +60°C |
| Sistema operativo | RouterOS v7, License Level 4 |
Technical Specification (R11e-LR9G)
| Cod.Art. | R11e-LR9G |
| MCU Model | GD32L233RC76 |
| GNSS Standard | GPS (MT3337V) |
| LoRa Band | 915 MHz (AU915-928, US902-928, AS923, KR920-923) |
| Max Rx Sensitivity | -141 dBm |
| Consumo massimo di energia | 1.3 W |
| Temperatura di esercizio | -40°C to +70°C |
Wireless Specifications (wAP LR9G kit, 2.4 GHz)
| Tasso | Tx (dBm) | Receive Sensitivity |
| 1 MB/s | 22 | -96 |
| 11 MB/s | 22 | -89 |
| 6 MB/s | 20 | -93 |
| 54 MB/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Usage and Compatibility
The wAP LR9G kit is designed for outdoor IoT applications, such as smart agriculture (e.g., monitoring soil moisture or livestock), industrial telemetry (e.g., tracking temperature or pressure sensors), and smart city deployments (e.g., managing streetlights or air quality monitors). It integrates with The Things Network or private LoRa® servers via a pre-installed UDP packet forwarder. The R11e-LR9G miniPCIe card enables LoRa® connectivity for any compatible MikroTik device, ideal for mobile gateways or vehicle tracking with GPS support. Both devices support 915 MHz LoRa® bands (AU915-928, US902-928, AS923, KR920-923) and feature robust designs for harsh environments. The kit includes a 24 V 0.8 A power adapter, Gigabit PoE injector, and mounting accessories for flexible deployment.
Summary
The MikroTik wAP LR9G kit and R11e-LR9G provide cost-effective, high-sensitivity LoRa® solutions with GPS and Wi-Fi, perfect for outdoor IoT applications like smart agriculture, industrial telemetry, and smart city infrastructure.
