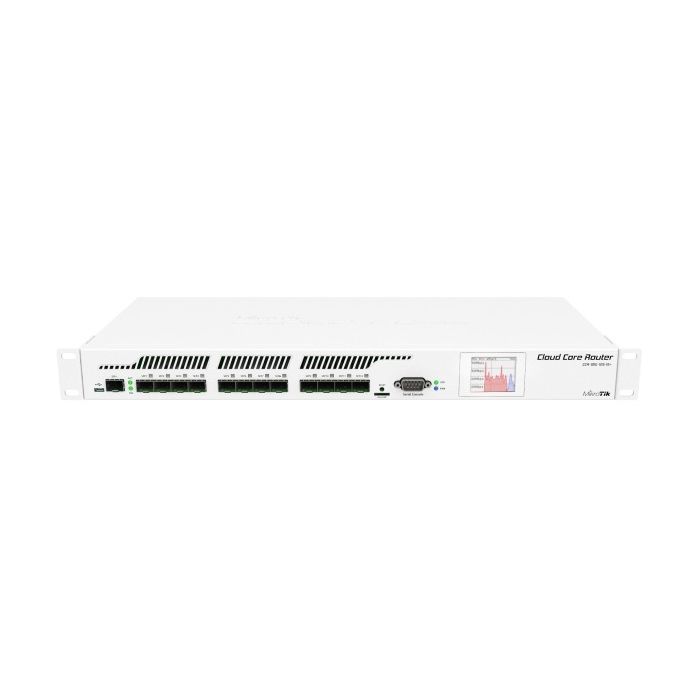

Mikrotik CCR1016-12S-1S+

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M coper module.

• 12x SFP ports for 1 Gigabit connectivity
• 1x SFP+ port for 10 Gigabit connectivity
• 16 core Tilera CPU, 1.2GHz clock per core
• 12 Mbytes total on-chip cache
• State of the art TILE GX architecture
• Ports directly connected to CPU
• 1U rackmount case
• Color touchscreen LCD display
• two power supplies for redundancy

Technical specification :

CPU	Tilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core)
Memoria	2GB built-in RAM
SFP	Twelve SFP ports and one SFP+ port
Espansione	microUSB port
Immagazzinamento	128MB Onboard NAND
Porta seriale	One DB9 RS232C asynchronous serial port
Extra	Beeper; voltage, current and temperature monitoring, fan, SD Card slot
Opzioni di alimentazione	2x IEC C14 standard PSU units built in, 110/220V
Dimensioni del pannello	290x155mm
Temperatura	Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency
OS	MikroTik RouterOS v6, Level 6 license
Incluso	CCR1016-12S-1S+: router in a 1U case with LCD, 2x IEC power cables, RJ45 SFP coper module, rackmount ears
