Jirous JRC-29EX MIMO 2pcs (N/female)

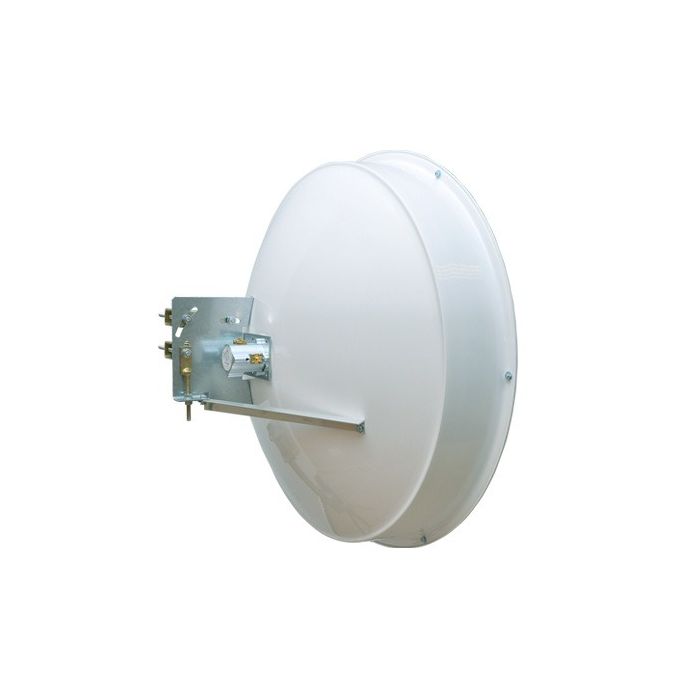

JIROUS-JRC-29EX-MIMO is a dual-polarization 28,6 dBi ± 0,6 dBi parabolic antenna for 5GHz band. It has a high-level polarization separation and high front to back ratio. The antenna is made of die cast aluminium and it is powder coated. The Jirous JRC 29EX MIMO antennas is designed for Point-to-Point scenario or for client station antenna for long distance links. Also, the plastic cover (made of UV-resistant ABS) is included.

The JIROUS-JRC-29EX-MIMO as compared to JIROUS-JRC-29MIMO is equipped in metal ring which improve the separation of interferences from other antennas in one mast.

Main features:

• dual-polarized antenna, horizontal and vertical polarization
• easy to use with GentleBOX JR-200
• keenly priced
• only 1 antenna instead 2 save money for mast!
• extra high front to back ratio
• metallic collar assures increased isolation between antenna on mast = lower interference between links
• direction links for long and medium distance, also short in difficult conditions
• client antenna for large distances and difficult conditions
• setting elevation (of gradient) and azimuth has independent adjustment
• you can count attainable distance from section of calculation
• radome (plastic parabola cover) for each antenna free!

Frequency Range	5,4 - 5,9GHz
Gain	28,6 dBi ± 0,6 dBi
VSWR	<1,5
Polarization	Horizontal and vertical
Main beamwidth	5,8°
Front to back radio	>= 42 dB

Dimensions	Diameter 650mm
Connector	2 x N female
Design	Waterproof antenna
