Ubiquiti OEM Ubiquiti Gigabit PoE 24V 12W Power Adapter
11,65 € 9,47 €
Disponibile
SKU
OEM-UBIQUITI-POE-24V-12W-G
SKU del produttore | POE-24-12W-G |
---|---|
Lunghezza del cavo | 1m |
Produttore | Ubiquiti |
In un imballaggio collettivo | 50 |

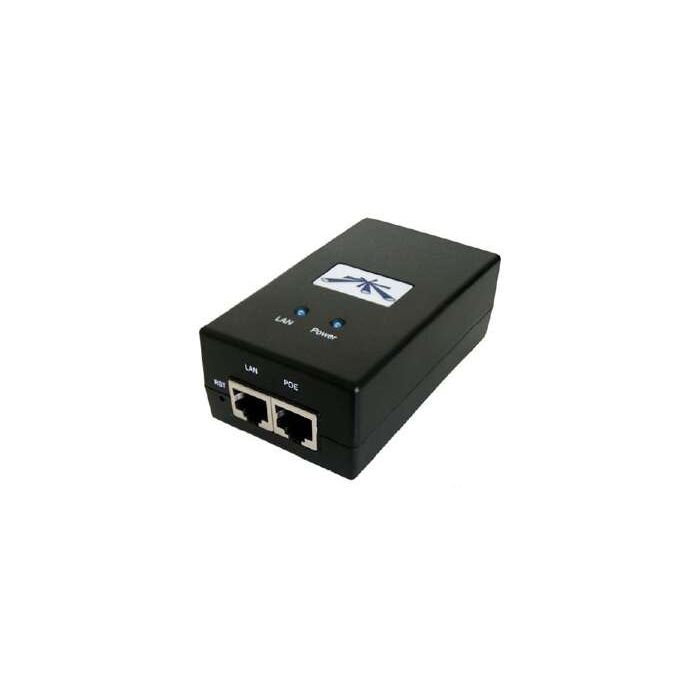

OEM Ubiquiti Gigabit PoE 24V 12W Power Adapter
Technical specification:
Output Voltage | 24VDC @0.5A |
Input Voltage | 90-260VAC @47-63Hz |
Input Current | 0.3A @120VAC, 0.2A @230VAC |
Inrush Current | <15A peak @120VAC, <30A peak |
Efficiency | 70+% |
Output Ripple | 1% Max |
Switching Frequency | 200kHz |
Line Regulation | +/- 0.5% |
Load Regulation | +/- 1% |
Operating Temperature | -10C to +60 deg C |
Storage Temperature | -20 to +85 deg C |
Operating Humidity | -10C to +60 deg C |
Size (LXWXH) | 85 x 55 x 33 (mm) |
Weight | 4 oz |
AC Connector | IEC-320 C6 |
AC Power cord | Not included |
Data IN / POE | RJ45 Shielded Socket |
80% Current Indicator | Power LED will change color |
Surge Protection | Common Mode |
Clamping Protection | 11V Data, 77.5V Power |
Max Surge Discharge | 1200A (8/20uS) Power |
Peak Pulse Current | 36A (10/1000uS Data) |
Shunt Capacitance | <5pF data |
Response Time | <1nS |
Compliance | UL, EN55022 (CISPR22) class B, Meets CE |
LAN Activity Indicator | Detects if LAN is connected to device |
Remote Reset Capability | Supports Airmax Bullet,Rocket,Nano,Pico |
