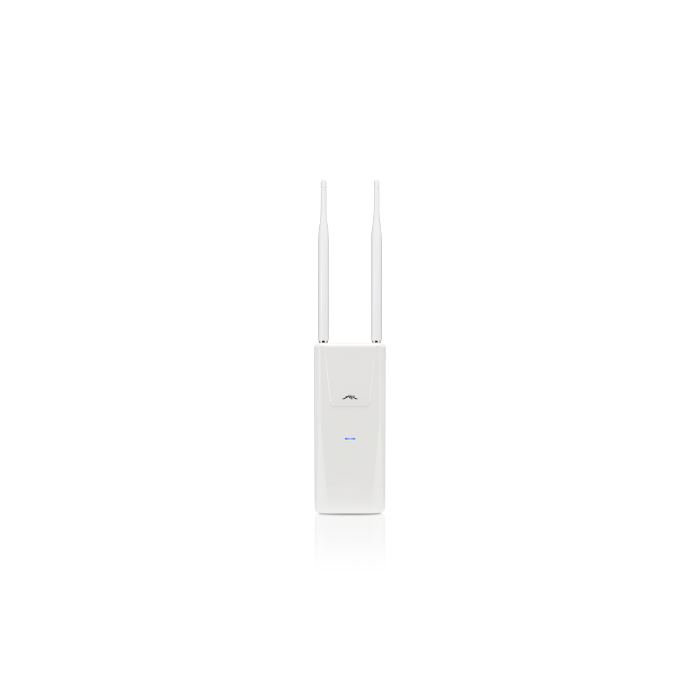

Ubiquiti UniFi UAP-Outdoor+ (UAP-Outdoor+)

Designed for noisy, high-density environments, the UAP-Outdoor+ utilizes our innovative Multi-Lane RF technology to provide superior capacity and throughput. The UAP-Outdoor+ includes two external antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft). It includes two 5dBi external antennas and 2x10/100Mbps Ethernet ports. UAP-Outdoor+ supports both 48V passive PoE and 802.3af powering options.

Main features

• Utilize Multi-Lane RF Technology for high-density applications
• Up to 28dBm 2.4GHz 2x2 MIMO wireless interface
• 2x 10/100Mbps Ethernet ports
• 48V passive PoE and 802.3af support

UniFi Software main features

• Zero Handoff Roaming
• Auto-detection of new APs
• Multi‑Site Management
• Detailed Analytics
• WLAN Groups
• Wireless Uplink
• Guest Portal/Hotspot Support

Multi-Lane RF Technology

Wireless client devices in high-density areas experience significant interference and noise stemming from multiple APs using the same operating band.

With the launch of the UniFi AP-Outdoor+, Ubiquiti Networks introduces our patented Multi-Lane RF™ technology, which optimizes the operating channel and rejects interference using specialized circuitry, the High-Selectivity Receiver (HSR).

Our innovative Multi-Lane RF technology isolates signalson the operating channel and removes adjacent channel interference. Wireless capacity and throughput areincreased in high-density areas, and multiple APs can operate in close proximity.

When the UniFi AP-Outdoor+ operates on channel 6, its HSR filter specifically eliminates all non-channel 6 frequencies, creating a clean spectrum with minimal noise. So with Multi-Lane RF technology, you truly have three high-speed, multi-lane channels (1, 6, and 11) available for superior capacity and throughput.
