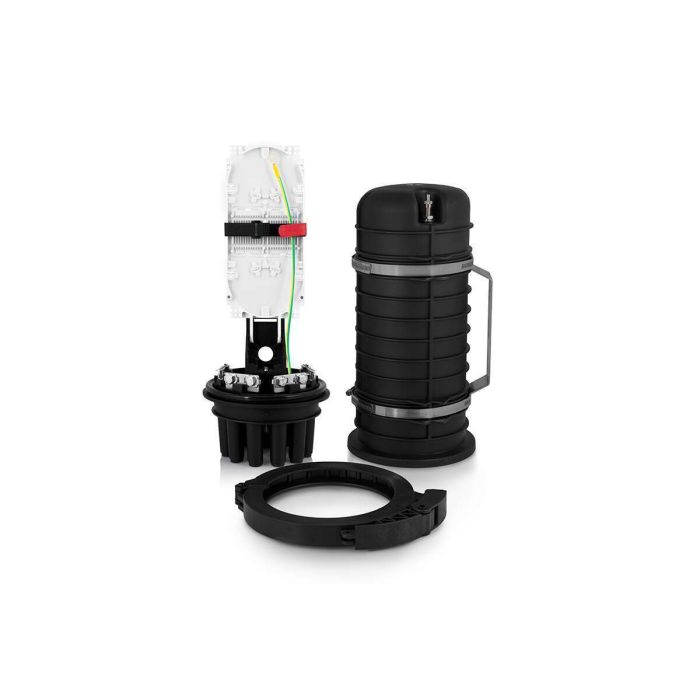

XB-TN-FOSC-400-A8

Fiber optic tycon 400 A8 (max: 96J - 4xS1) is fully hermetic, heat-seal inlet/outlet ports. The organization of fiber optic fibers in the muff facilitates optical fiber trays, which can be purchased separately, so the customer decides whether he needs. The vertical Tycon series is equipped with fully hermetic, heat-sealed inlet / outlet ports. This type of muff is used to protect fiber optic strands and branching applications. Polypropylene (PP) material forming the casing is made of high quality material resistant to UV radiation, low (-40 °C) and high (+ 60 °C) temperature, and chemical substances which makes it suitable for both overhead installations and duct and earth. It is designed so that its installation proceeds in a simple and efficient manner. All metal elements of the joint are made of corrosion-resistant materials. They are also equipped with a ground connection and a pressure control valve installed in the dome of the coupling.

Set contains:

• bracket for fixing the muff on a pole / wall / other object,
• heat-sealing tubes for sealing cable entries,
• 40mm weld seams,
• protective tubes for the distribution of fibers,
• sandpaper,
• earthing cables,
• cleaning tissues.
• self-adhesive aluminum tape to protect the cable during welding of heat-shrinkable tubes.

Accessories needed to buy:

• Optical trays
