XB-TN-FOSC-400-A8-24S

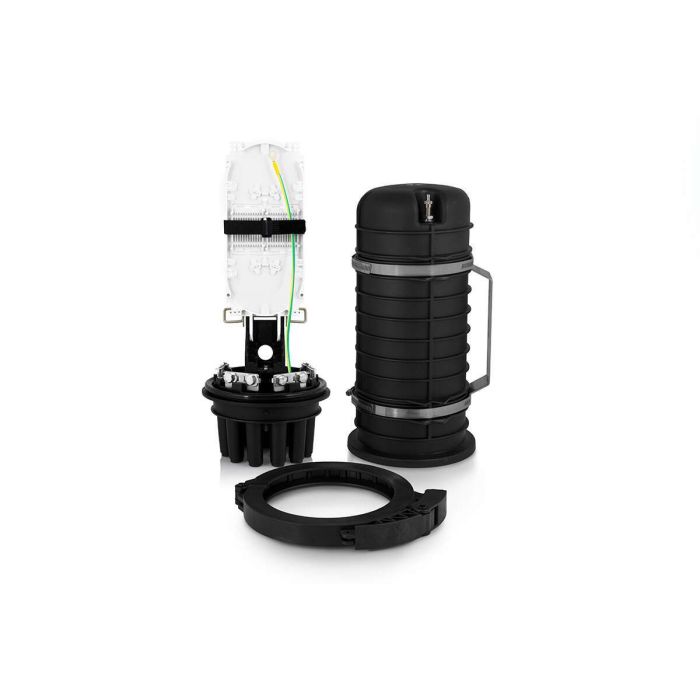

Splice Enclosures Tycon 400 A8-24S (max: 72J - 3xS1) + Patch Panel is fully hermetic, heat-seal inlet / outlet ports. It was designed based on the construction of a Tycon 400 A8 (96J: 4xS1) fiber socket. It is extended by an integrated patch panel allowing the installation of up to 24 fiber optic adapters in SC Simplex size. By using the patch panel with SC Simplex adapters, you can significantly reduce the time and cost of installation. The organization of fiber optic fibers in the muff facilitates optical fiber trays, which can be purchased separately, thanks to which the customer decides whether he needs them at all and in what quantity. This type of muff is used to protect fiber optic strands and branching applications. Polypropylene (PP) material forming the casing is made of high quality material resistant to UV radiation, low (-40 ° C) and high (+ 60 ° C) temperature, and chemical substances which makes it suitable for both overhead installations and duct and earth. It is designed so that its installation runs in a simple and efficient manner and at the same time offers a proven fiber optic management system. All metal elements of the joint are made of corrosion-resistant materials. Equipped with a ground connection and a pressure control valve installed in the dome of the coupling.

Set contains:

• bracket for fixing the muff on a pole / wall / other object,
• heat-sealing tubes for sealing cable entries,
• 40mm weld seams,
• protective tubes for the distribution of fibers,
• sandpaper,
• earthing cables,
• cleaning tissues.
• self-adhesive aluminum tape to protect the cable during welding of heat-shrinkable tubes.

Accessories needed to buy:

• Tycon S1 fiber optic tray (24) 1-3 pcs
