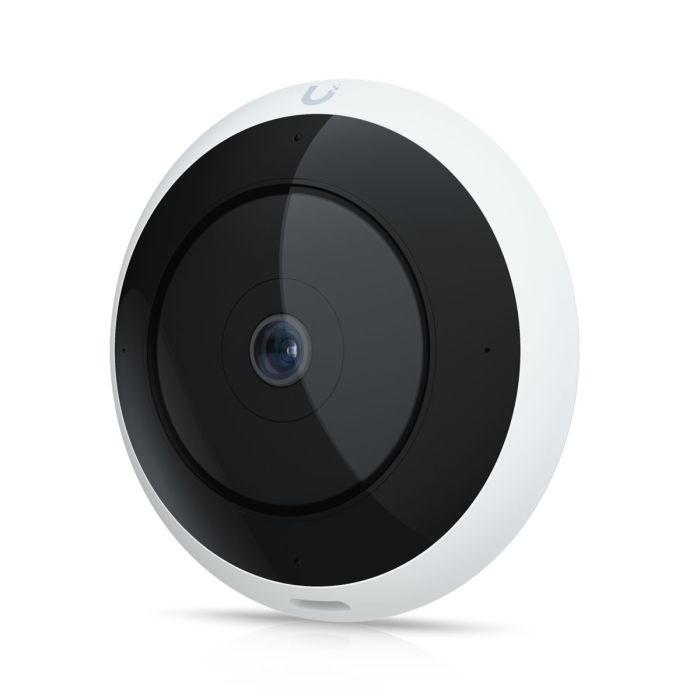

Ubiquiti AI 360 (UVC-AI-360-W)

Ubiquiti 2K PoE 360° PTZ Camera – Indoor/Outdoor Camera with Fisheye Lens (white)

The Ubiquiti 2K PoE 360° PTZ Camera (UVC-AI-360-W) is a versatile camera for indoor and outdoor surveillance, offering a full 360-degree view thanks to a Fisheye lens and built-in Pan-Tilt-Zoom (PTZ) capabilities. The device is equipped with a 5MP CMOS sensor that records 2K resolution (4MP, 1920 x 1920 pixels in 1:1 aspect ratio) at 30 frames per second. This allows for observation of the entire room or monitored area without blind spots, while also offering pan and zoom capabilities.

At the heart of the device is a quad-core ARM Cortex-A53 processor, which is responsible for image analysis – the camera detects people, vehicles, and animals. In low-light conditions, night mode is activated, supported by a mechanical infrared cut filter and IR LEDs, ensuring visibility in complete darkness at a distance of up to 9 meters. The camera is also equipped with a two-way audio system, allowing not only listening in on the monitored area but also voice communication.

The 147 mm diameter housing is made of an aluminum alloy and polycarbonate, and the dome itself has a special, hard protective coating. The device has an IK08 impact resistance and an IPX4 ingress protection class (when mounted under a roof). The camera communicates with the network and is powered by a single PoE cable via a gigabit Ethernet port (RJ45). Maximum power consumption is only 8.64 W. The device is designed to operate in temperatures from -20°C to 40°C.

Key Features

• Resolution: 2K (4MP, 1920 x 1920, 1:1) at 30 fps

• Optics: 5MP sensor CMOS, Fisheye lens (360° field of view)

• Night mode: IR LEDs with a range of up to 9 m, mechanical infrared cut filter (ICR)

• Image analysis: Intelligent detection of people, vehicles, and animals

• Audio: Supports two-way audio communication.

• Durability: Impact resistance class IK08, sealing IPX4 (under cover)

• Interfaces: 1x Gigabit Ethernet port (GbE RJ45)

• Power: Standard PoE power supply (37-57 V DC), maximum power consumption 8.64 W
