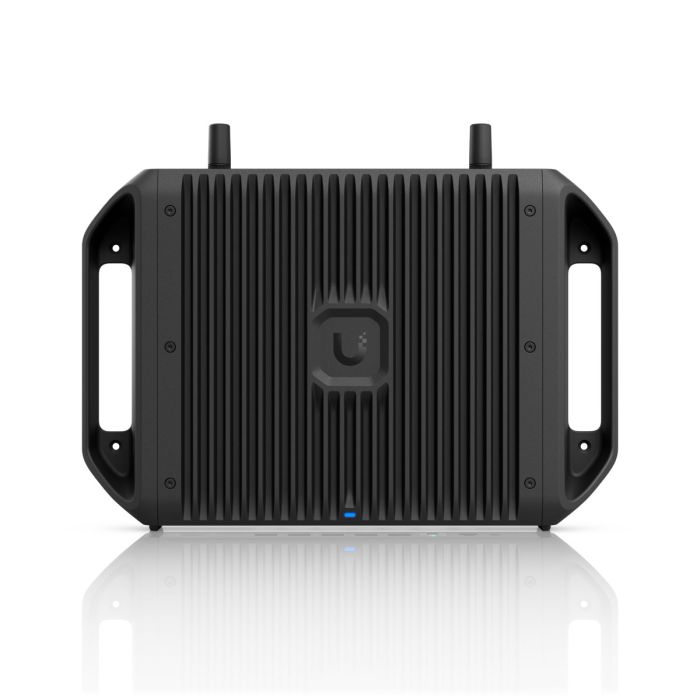

Ubiquiti Cloud Gateway Industrial - UCG-Industrial
| SKU del fabricante | UCG-Industrial |
|---|---|
| Fabricante | Ubiquiti |
The Ubiquiti UCG-Industrial is a ruggedized gateway with WiFi 7, a UniFi controller, and an NVR. It offers 10G ports, 5 Gbps IDS/IPS, and 270W of PoE power.
Ubiquiti UniFi Cloud Gateway – Ruggedized Gateway with WiFi 7 and PoE+++ Power
Ubiquiti UniFi Cloud GatewayIndustrial (UCG-Industrial) is an advanced, multi-function, passively cooled gateway designed for demanding environments. The device integrates an advanced router, firewall, WiFi 7 access point, and a controller supporting the full UniFi application suite (Network, Protect, Access, Talk, Connect). Thanks to the built-in card reader with a pre-installed 128 GB microSD card, the UCG-Industrial can function as an NVR for UniFi Protect cameras right out of the box. At the heart of the device is a quad-core ARM Cortex-A73 processor, which delivers 5 Gbps throughput with IDS/IPS protection enabled.
The gateway boasts extensive power supply capabilities and a rich set of interfaces. It is equipped with a total of 6 ports: 1x10G SFP+, 1x10GbE RJ45, and 4x2.5GbE RJ45. The maximum power of all PoE ports is 270 W (DC power), and support for PoE+ (up to 30 W) and PoE++ (up to 90 W per port) allows for direct powering of the most demanding devices, such as advanced PTZ cameras. The integrated WiFi 7 (802.11be) access point in a 2x2 MIMO configuration guarantees wireless connectivity at speeds of up to 4.3 Gbps in the 5 GHz band.
The polycarbonate and aluminum alloy housing is designed to operate in extreme temperatures from -30°C to 50°C. The device offers multiple mounting options: wall-mounted, desk-mounted (using the included weighted stand), or rack-mounted (requires an optional bracket). Additionally, the device is equipped with two SIM card slots supporting the Remote SIM feature. This allows for convenient insertion of SIM cards directly into the device, while an externally mounted antenna provides cellular connectivity. UniFi 5G Max Outdoor. The frame also supports SD-WAN, dynamic routing (OSPF), load balancing, and a wide range of VPN protocols (WireGuard, OpenVPN, IPsec).
Key Features
-
Routing Performance: IDS/IPS Throughput up to 5 Gbps, Supports 500+ Users
-
Wired Interfaces: 1× 10G SFP+, 1× 10 GbE RJ45, 4× 2.5 GbE RJ45
-
PoE power supply: Total power 270 W (DC power supply); PoE+++ (90 W) and PoE+ (30 W) support
-
Wireless connectivity: Integrated WiFi 7 (802.11be), up to 4.3 Gbps (5 GHz)
-
Built-in memory: Built-in 128 GB microSD card for UniFi Protect
-
Device Construction: Polycarbonate and aluminum alloy, passive cooling, operating temperature from -30°C to 50°C
-
Advanced Features: OSPF, SD-WAN, 2x SIM card slots
-
Device Power Supply: External 54V DC (350 W) power supply included + ATX input (48V)
Technical Specifications
Device
| UniFi App Suite | Network Protect Access Talk Connect |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Hubs access | 50 |
| Simultaneously connected users | 500+ |
| Max. Number of WAN Ports | 5 |
| Default WAN Ports | (1) 10G SFP+ (1) 10GbE RJ45 (1) 2.5GbE RJ45 |
| Port Layout | 2.5GbE RJ45: 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) 10GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M) 10G SFP+: 1 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Coverage Area | 115 m² (1,250 ft²) |
Security |
|
| Stateful Firewall | Yes |
| Layer 7 Firewall with Applications | Yes |
| DPI and Traffic Identification | Yes |
| Advanced Zone-Based Filtering (Regions, Domains, Applications) |
Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 55,000+ CyberSecure |
| Traffic segmentation based on VLAN/Subnets | Yes |
VPN and SD-WAN |
|
| Free SD-WAN (no license required) | Yes |
| VPN Site-to-Site | Site Magic IPsec OpenVPN |
| VPN Server | Identity Endpoint One-Click VPN Teleport Zero-Configuration VPN WireGuard OpenVPN L2TP |
| VPN Client | OpenVPN WireGuard |
Network |
|
| Multi-WAN Load Balancing | Yes |
| Routing dynamic | OSPF |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional link Backup | With UniFi LTE Backup |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 4,000 |
| Virtual Network Override | Yes |
| All Traffic Flows | — (Blocked Traffic Only) |
Integrated WiFi |
|
| Standard WiFi | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Bandwidth | 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| DESPITE | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Antenna gain | 5 GHz: Rod antenna: 5 dBi, Omnidirectional antenna (Terminal): 6 dBi 2.4 GHz: Rod antenna: 3 dBi, Omnidirectional antenna (Terminal): 6 dBi |
| Max. TX (Transmit) Power | 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps up to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps up to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| NVR Storage | Pre-installed 128GB microSD card for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | DC Input: 270W ATX Power: 75W |
| Max. PoE power per port (according to PSE) | PoE+: 30W PoE+++: 90W |
| Voltage range in PoE mode | 50-57V |
| Max. power consumption | 28W (does not include POE outputs) |
| Power Method | (1) DC Input (350W Power Supply) (1) ATX Power Supply (48V) |
| Power Supply | 54V DC, 350W (adapter included) ATX Power Supply (48V) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 85 BTU/hr (does not include output PoE) |
| Processor | Quad-core ARM® Cortex®-A73 @ 2.2 GHz |
| System Memory | 3 GB |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet SFP+ System MicroSD SIM |
| Buttons | (1) Factory Reset reset) (2) Handle Release Buttons |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Software |
|
| App Requirements | UniFi iOS™ Web App: Version 10.32.0 or later newer Android™: Version 10.35.0 or newer |
Other |
|
| Dimensions | Device: 307.9 x 203.5 x 43.7 mm Desktop stand: 203.5 x 100.2 x 21.9 mm |
| Weight | Device: 2.4 kg Desktop stand: 321 g |
| Mounting method | Wall-mounted On the desk (desktop stand included) Rack-Mountable (accessories sold separately) |
| Case Material | Device: Polycarbonate, Aluminum Alloy Desktop Stand: Polycarbonate, Galvanized Steel, Silicone Rubber |
| Environmental Temperature | -30 to 50° C (-22 to 122° F) |
| Environmental Humidity | 5 to 95% (non-condensing) |
| SKU del fabricante | UCG-Industrial |
|---|---|
| Fabricante | Ubiquiti |
| GPSR contacto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
