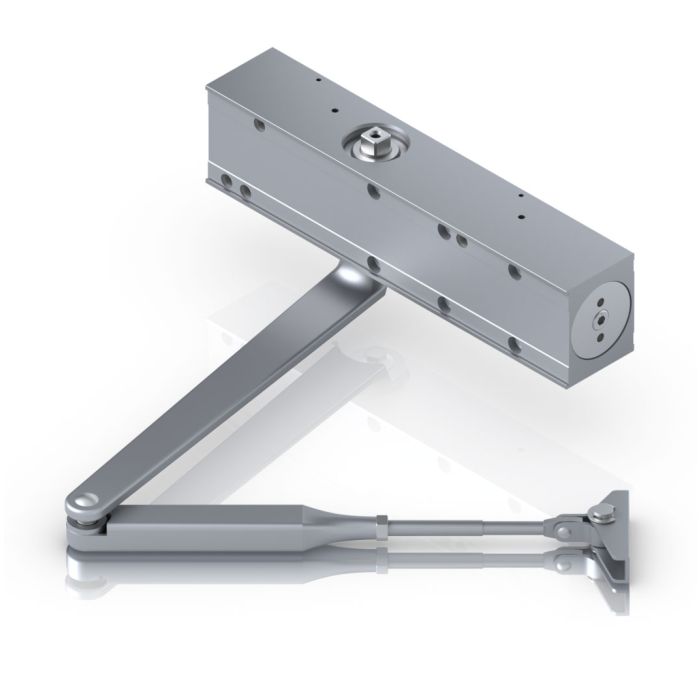

Ubiquiti Door Closer (UACC-DoorCloser)
| SKU del fabricante | UACC-DoorCloser |
|---|---|
| Fabricante | Ubiquiti |
Ubiquiti Door Closer is a universal mechanical door closer with EN 2-6 force adjustment, designed for doors weighing up to 120 kg and up to 1400 mm wide.
Ubiquiti Door Closer - Mechanical Door Closer with EN 2-6 Adjustment
Ubiquiti Door Closer (UACC-DoorCloser) is a mechanical door closer designed for safe and controlled door closing. The door closer features a wide EN 2-6 adjustable closing force range, allowing it to operate doors up to 1400 mm wide and weighing up to 120 kg. The main body of the mechanism is made of a durable aluminum alloy, carbon steel, and hot-rolled steel, and the entire assembly is protected by a cold-rolled steel cover.
The door closer's universal design allows for standard installation on the door leaf on the pull side, on the frame on the push side, or parallel installation. The installer has access to adjustable closing speed, latching speed, and a damping function. The mechanism allows for a maximum opening of the door leaf at an angle of 180°.
Key features
-
Force class (EN): Adjustment within the range of EN 2-6 (for installation with a parallel arm EN 3-5).
-
Load capacity and door operation: From 40 kg (850 mm wide) to a maximum of 120 kg (1400 mm wide) mm).
-
Adjustment options: Closing speed, final latch, and opening damping settings.
-
Opening angle: Maximum 180°.
Technical specifications
Functional parameters and Installation |
|
| Door closer force | EN 2-6 |
| Maximum door opening angle | 180° |
| Application range | Standard installation on the door on the pull side Installation on the door frame / lintel on the push side (option not covered by the certificate) Installation with parallel arm on the push side (EN 3-5 only) |
| Door width / weight (Standard installation / on door frame) | Size 2: 850 mm / 40 kg Size 3: 950 mm / 60 kg Size 4: 1100 mm / 80 kg Size 5: 1250 mm / 100 kg Size 6: 1400 mm / 120 kg |
| Door width / weight (Installation with parallel arm) | Size 3: 950 mm / 60 kg Size 4: 1100 mm / 80 kg Size 5: 1250 mm / 100 kg |
Other |
|
| Dimensions | 256.5 x 60 x 48 mm (10.1 x 2.4 x 1.9") |
| Weight | 3.3 kg (7.3 lb) |
| Housing Materials | Device: Aluminum alloy, carbon steel, hot-rolled steel Grid: Cold-rolled steel |
| Certifications | CE, EN 1154, EN 1634, AS 1530.4 |
| SKU del fabricante | UACC-DoorCloser |
|---|---|
| Fabricante | Ubiquiti |
| GPSR contacto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
