UBIQUITI Door Hub Mini (UA-Hub-Door-Mini)

Name: UBIQUITI Door Hub Mini (UA-Hub-Door-Mini)
Brand: Ubiquiti
SKU: UBIQUITI-UA-HUB-DOOR-MINI
Price: 112 EUR
Availability: InStock

123,43 € 100,35 €

Disponible

SKU

UBIQUITI-UA-HUB-DOOR-MINI

Ubiquiti Door Hub Mini (UA‑Hub‑Door‑Mini) es un concentrador DIN compacto con PoE++, diseñado para controlar una puerta con salida de relé, entradas REX/DPS y dos salidas PoE.

Accesorios y complementos:

Ubiquiti Access Rescue KeySwitch (UA-Rescue)

70,78 €

UBIQUITI G3 Reader Pro (UA-G3-Pro-B)

321,66 €

UBIQUITI G3 Reader Pro (UA-G3-Pro-W)

298,37 €

UBIQUITI Reader Flex (UA-G3-Flex-B)

165,76 €

UBIQUITI Reader Flex (UA-G3-Flex-W)

159,49 €

UBIQUITI G3 Reader (UA-G3-B)

126,34 €

UBIQUITI G3 Reader (UA-G3-W)

128,13 €

UBIQUITI Pocket Keyfob x10 (UA-Pocket)

83,33 €

Ubiquiti Electric Lock - UACC-Lock-Strike-Secure-15mm

72,17 €

UBIQUITI Access Card - Tarjeta de acceso NFC, 10 unidades, color negro (UA-Card-B-10)

26,43 €

UBIQUITI Access Card - Tarjeta de acceso NFC, 100 unidades, color negro (UA-Card-B-100)

232,06 €

UI Care warranty extension for UA-Hub-Door-Mini

25,98 €

Ubiquiti Door Lock Relay Cable - UACC-Cable-DoorLockRelay-1P

112,00 €

Ubiquiti Fail-Safe Strike Lock - UACC-Lock-Strike-Safe-15mm

77,95 €

Ubiquiti Magnetic Lock - UACC-Lock-Magnetic-270kg

129,02 €

Ubiquiti Junction Utility - Gabinete de instalación exterior IP55 (UACC-Junction-Utility)

100,35 €

Ubiquiti Fail-Secure Strike Lock 8mm - Encendedor eléctrico de 12 V (UACC-Lock-Strike-Secure-8mm)

77,95 €

Detalles

Más información

Archivos para descargar

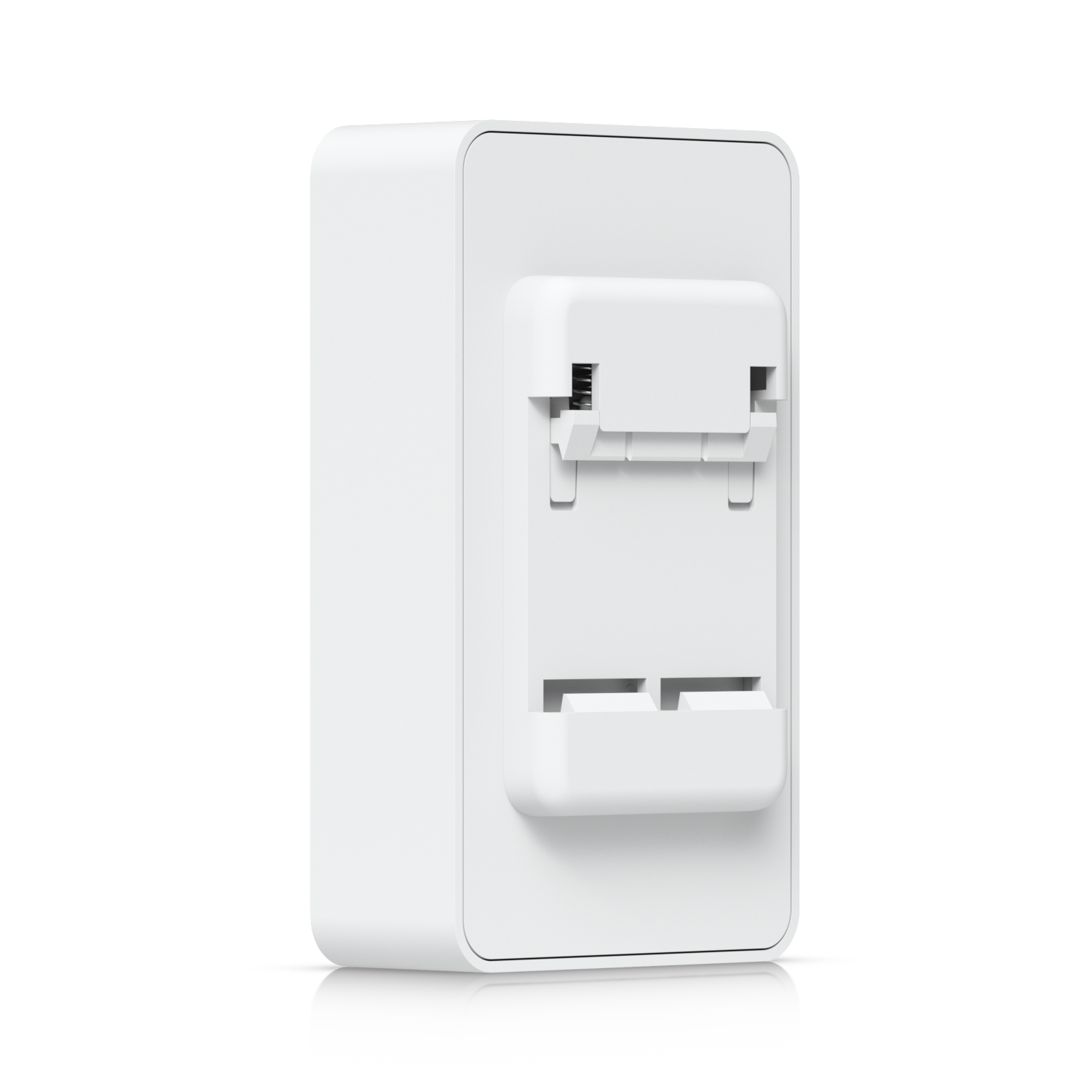

Ubiquiti Door Hub Mini (UA‑Hub‑Door‑Mini)

Descripción del producto

UA‑Hub‑Door‑Mini es un módulo compacto para montaje en riel DIN, diseñado para integrarse con UniFi Access. Ofrece tres puertos RJ45 Gigabit, alimentación PoE++ y salidas PoE, salida de relé para cerradura, entradas para sensor de posición de puerta (DPS) y botón de salida (REX), además de protección contra sabotaje.

Características clave

Control de una puerta: relé dry contact (30 V DC / 1 A, NO/NC)
Entradas: REX, DPS
1× entrada PoE++ (50 V), 2× salidas PoE (802.3af, total 31 W)
Montaje en riel DIN, interruptor antimanipulación, botón de reinicio
Certificaciones: UL 294 Nivel I, NDAA, CE, FCC, IC

Especificaciones técnicas

Unidad de mantenimiento de existencias (SKU)	UA-HUB-DOOR-MINI
Number of Doors	1
Reader Interfaces	1× Lector UniFi Access
Inputs	1× REX, 1× DPS
Salidas	1× Relé de cerradura (dry, NO/NC, 30 V DC, 1 A)
Interfaz de red	3× Ethernet Gigabit RJ45
Método Power	PoE++ 50 V DC
Consumo de energía	Máx. 50 W
Salida PoE	2× 802.3af (31 W total)
Montaje	Riel DIN
Temperatura de funcionamiento	0–40 °C
Humedad de funcionamiento	5–90 % sin condensación
Dimensiones	113 × 66 × 27.6 mm
Peso	190 g
Certificaciones	UL 294 Nivel I, CAN/ULC-60839-11-1, NDAA, CE, FCC, IC

Aplicaciones y compatibilidad

Ideal para el control de accesos en entradas individuales de oficinas, empresas y residencias. Compatible con UniFi Access.

Resumen

Door Hub Mini ofrece una solución compacta y segura para controlar una sola puerta, con relé seco, PoE++ y protección contra manipulaciones.

Más información
SKU del fabricante	UA-Hub-Door-Mini
EAN	810084698839
Fabricante	Ubiquiti
GPSR contacto	Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com
